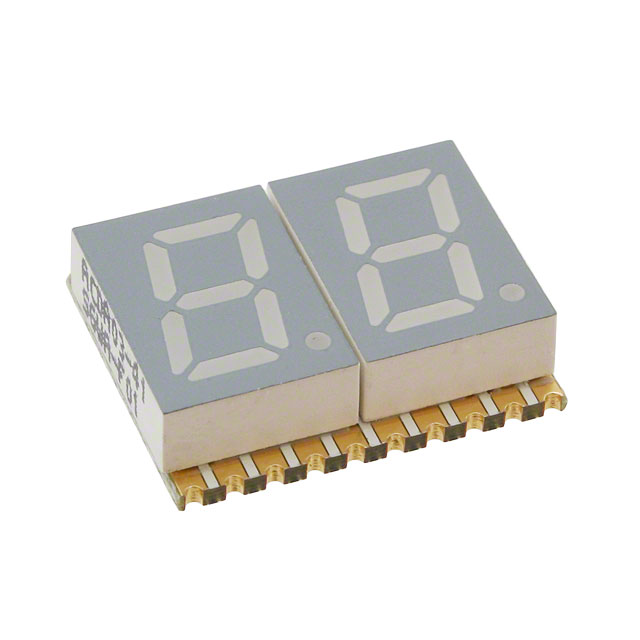

ACDA03-41SGWA-F01

Active

Kingbright

DISPLAY 7SEG 0.3" DBL GRN 20SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACDA03-41SGWA-F01

Active

Kingbright

DISPLAY 7SEG 0.3" DBL GRN 20SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACDA03-41SGWA-F01

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	3.5 mcd
Number of Characters	2
Package / Case	20-SMD, No Lead
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	0.394 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	14.8 mm
Size / Dimension [y]	0.583 in
Size / Dimension [z]	3.75 mm
Size / Dimension [z]	0.148 in
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

ACDA03 Series

Part	Number of Characters	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Package / Case	Power Dissipation (Max) [Max]	Millicandela Rating	Display Type	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Kingbright ACDA03-41SEKWA-F01	2	Common Anode	0.3 in	7.62 mm	20 mA	3.75 mm	14.8 mm	0.148 in	0.394 "	10 mm	0.583 in	2.1 V	610 nm	20-SMD No Lead	75 mw	46 mcd	7-Segment
Kingbright ACDA03-41CGKWA-F01	2	Common Anode	0.3 in	7.62 mm	20 mA	3.75 mm	14.8 mm	0.148 in	0.394 "	10 mm	0.583 in	2.1 V		20-SMD No Lead	75 mw	12 mcd	7-Segment	Green
Kingbright ACDA03-41SGWA-F01	2	Common Anode	0.3 in	7.62 mm	20 mA	3.75 mm	14.8 mm	0.148 in	0.394 "	10 mm	0.583 in	2.2 V	565 nm	20-SMD No Lead	62.5 mW	3.5 mcd	7-Segment	Green
Kingbright ACDA03-41PBWA/A-F01	2	Common Anode	0.3 in	7.62 mm	20 mA	0.148 in	0.583 inches			0.472 in		3.2 V	468 nm	20-SMD No Lead	120 mW	6 mcd	7-Segment	Blue	3.75 mm	14.8 mm	12 mm
Kingbright ACDA03-41SRWA-F01	2	Common Anode	0.3 in	7.62 mm	20 mA	3.75 mm	14.8 mm	0.148 in	0.394 "	10 mm	0.583 in	1.85 V	660 nm	20-SMD No Lead	75 mw	9.8 mcd	7-Segment	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.80
		10	$ 4.10
		100	$ 3.36
	Digi-Reel®	1	$ 5.80
		10	$ 4.10
		100	$ 3.36
	Tape & Reel (TR)	300	$ 3.36
		600	$ 2.83
		900	$ 2.73
		1500	$ 2.60
		2100	$ 2.49

Description

General part information

ACDA03 Series

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.2V 20mA 0.394" H x 0.583" W x 0.148" D (10.00mm x 14.80mm x 3.75mm) 20-SMD, No Lead
