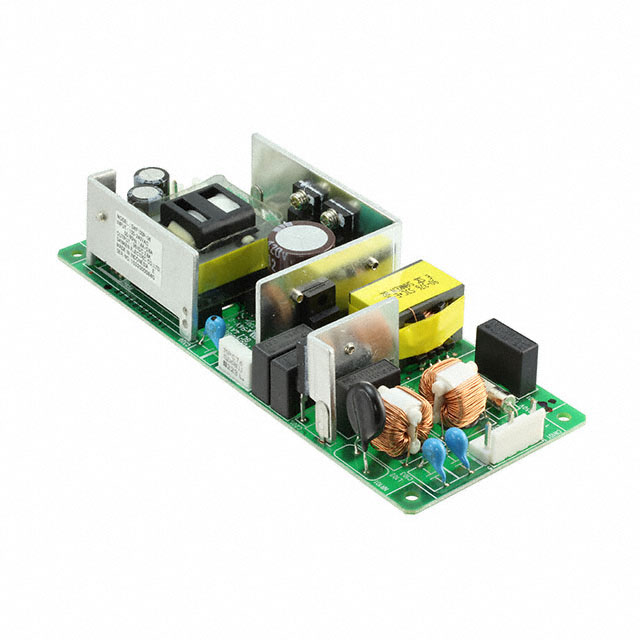

SWF100P-36

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 36V 100W

Deep-Dive with AI

Search across all available documentation for this part.

SWF100P-36

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 36V 100W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWF100P-36

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	2.8 A
Efficiency	89 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	100 W
Size / Dimension [x]	155 mm
Size / Dimension [x]	6.1 in
Size / Dimension [y]	2.44 "
Size / Dimension [y]	62 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

SWF100 Series

Part	Voltage - Isolation	Efficiency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Output 1	Number of Outputs	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Features	Approval Agency	Voltage - Output 1	Applications	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Size / Dimension [z]	Size / Dimension [y]
Sanken Electric USA Inc. SWF100P-36-R	3000 V	89 %	100 W	-10 °C	70 °C	Open Frame	2.8 A	1	Chassis Mount	33.5 mm	62 mm	2.44 "	1.32 in	155 mm	6.1 in	Adjustable Output PFC Remote On/Off Universal Input	CE	36 V	ITE (Commercial)
Sanken Electric USA Inc. SWF100P-24-LC	3000 V	89 %	100 W			Enclosed	4.2 A	1	Chassis Mount			2.44 "	1.3 "	155 mm	6.1 in	Adjustable Output Universal Input	CE cURus	24 V	ITE (Commercial)	-10 °C	158 °F	33 mm	62 mm
Sanken Electric USA Inc. SWF100P-48-L-R	3000 V	89 %	100 W	-10 °C	70 °C	Enclosed	2.1 A	1	Chassis Mount			2.83 in	1.77 in	185 mm	7.28 in	Adjustable Output PFC Remote On/Off Universal Input	CE	48 V	ITE (Commercial)			45 mm	72 mm
Sanken Electric USA Inc. SWF100P-36-LC-R	3000 V	89 %	100 W	-10 °C	70 °C	Enclosed	2.8 A	1	Chassis Mount			2.83 in	1.77 in	185 mm	7.28 in	Adjustable Output PFC Remote On/Off Universal Input	CE	36 V	ITE (Commercial)			45 mm	72 mm
Sanken Electric USA Inc. SWF100P-36-L-R	3000 V	89 %	100 W	-10 °C	70 °C	Enclosed	2.8 A	1	Chassis Mount			2.83 in	1.77 in	185 mm	7.28 in	Adjustable Output PFC Remote On/Off Universal Input	CE	36 V	ITE (Commercial)			45 mm	72 mm
Sanken Electric USA Inc. SWF100P-24-LC-R	3000 V	89 %	100 W			Enclosed	4.2 A	1	Chassis Mount			2.44 "	1.3 "	155 mm	6.1 in		CE cURus	24 V	ITE (Commercial)	-10 °C	158 °F	33 mm	62 mm
Sanken Electric USA Inc. SWF100P-24-L-R	3000 V	89 %	100 W			Open Frame	4.2 A	1	Chassis Mount			2.44 "	1.3 "	155 mm	6.1 in		CE cURus	24 V	ITE (Commercial)	-10 °C	158 °F	33 mm	62 mm
Sanken Electric USA Inc. SWF100P-36	3000 V	89 %	100 W			Open Frame	2.8 A	1	Chassis Mount			2.44 "	1.3 "	155 mm	6.1 in	Adjustable Output Universal Input	CE	36 V	ITE (Commercial)	-10 °C	158 °F	33 mm	62 mm
Sanken Electric USA Inc. SWF100P-36-LC	3000 V	89 %	100 W	-10 °C	70 °C	Enclosed	2.8 A	1	Chassis Mount			2.83 in	1.77 in	185 mm	7.28 in	Adjustable Output PFC Universal Input	CE	36 V	ITE (Commercial)			45 mm	72 mm
Sanken Electric USA Inc. SWF100P-24-L	3000 V	89 %	100 W			Open Frame	4.2 A	1	Chassis Mount			2.44 "	1.3 "	155 mm	6.1 in	Adjustable Output Universal Input	CE cURus	24 V	ITE (Commercial)	-10 °C	158 °F	33 mm	62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.53

Description

General part information

SWF100 Series

Open Frame AC DC Converters 1 Output 36V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
