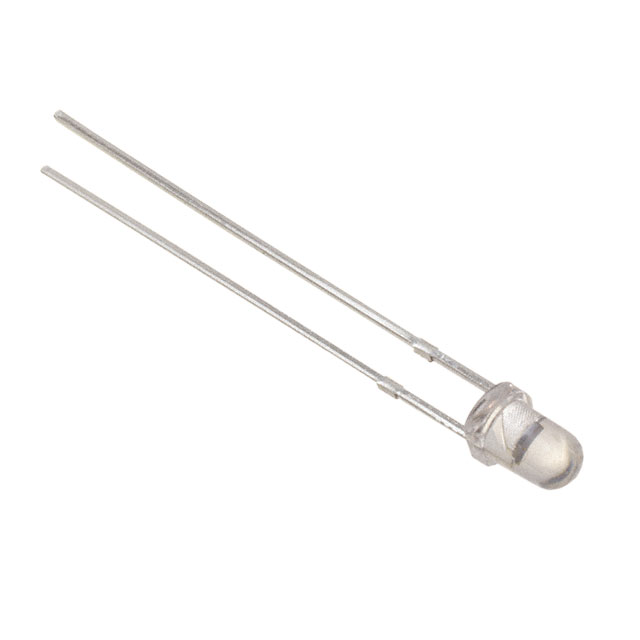

INL-5AHIR15

Active

Inolux

THROUGH HOLE / STANDARD 5MM T1 3

Search across all available documentation for this part.

Active

Inolux

THROUGH HOLE / STANDARD 5MM T1 3

Technical Specifications

Parameters and characteristics for this part

Part	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Viewing Angle	Mounting Type	Voltage - Forward (Vf) (Typ)	Package / Case	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Type	Configuration	Lens Size	Lens Size	Color	Wavelength - Peak	Supplier Device Package	Lens Color	Lens Style	Height (Max) [Max]	Lens Transparency	Current - Test	Millicandela Rating	Wavelength - Dominant	Radiant Intensity (Ie) Min @ If
Inolux INL-5ABCMIR30	100 mA	-40 °C	80 C	Top View	30 °	Through Hole	1.3 V	Radial	880 nm	6.5 mW/sr	Infrared (IR)
Inolux INL-5AA30					30 °	Through Hole	2 V	Radial				Standard	T-1 3/4	5 mm	Amber	610 nm	5 mm	Colorless	Round with Domed Top	8.65 mm	Clear	20 mA	780 mcd	605 nm
Inolux INL-5AHIR15	100 mA	-40 °C	80 C	Top View	15 °	Through Hole		Radial	940 nm		Infrared (IR)														7.8 mW/sr
Inolux INL-5AW30					30 °	Through Hole	3.3 V	Radial				Standard	T-1 3/4	5 mm	White		5 mm	Colorless	Round with Domed Top	8.65 mm	Clear	20 mA	8500 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.2V 100mA 7.8mW/sr @ 20mA 15° Radial
