G846A04100Y1EU
ActiveAmphenol ICC (Commercial Products)
WIRE TO BOARD 1.0MM PITCH R/A SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G846A04100Y1EU
ActiveAmphenol ICC (Commercial Products)
WIRE TO BOARD 1.0MM PITCH R/A SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G846A04100Y1EU |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Push-Pull |
| Insulation Color | White |
| Insulation Height | 0.167 in |
| Insulation Height | 4.25 mm |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -45 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.51 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.51 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.37 | |||
| Tape & Reel (TR) | 1700 | $ 0.29 | ||
| 3400 | $ 0.27 | |||
| 5100 | $ 0.27 | |||
| 8500 | $ 0.25 | |||
| 17000 | $ 0.24 | |||
Description
General part information
G846A041 Series

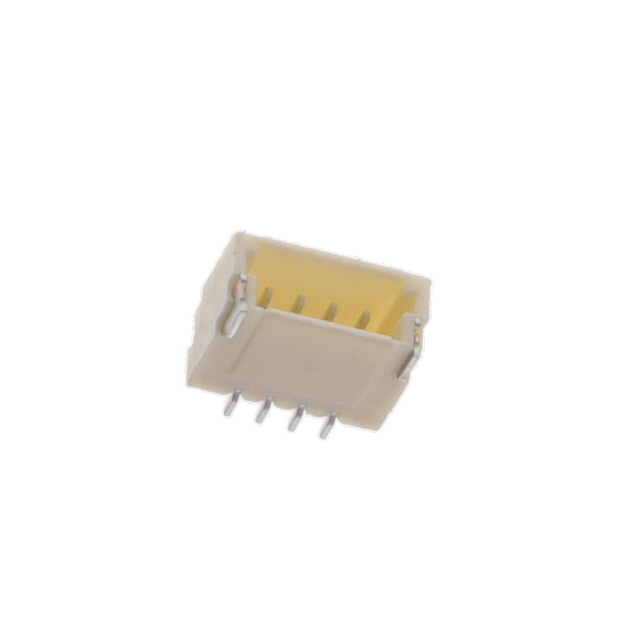

Connector Header Surface Mount, Right Angle 4 position 0.039" (1.00mm)
