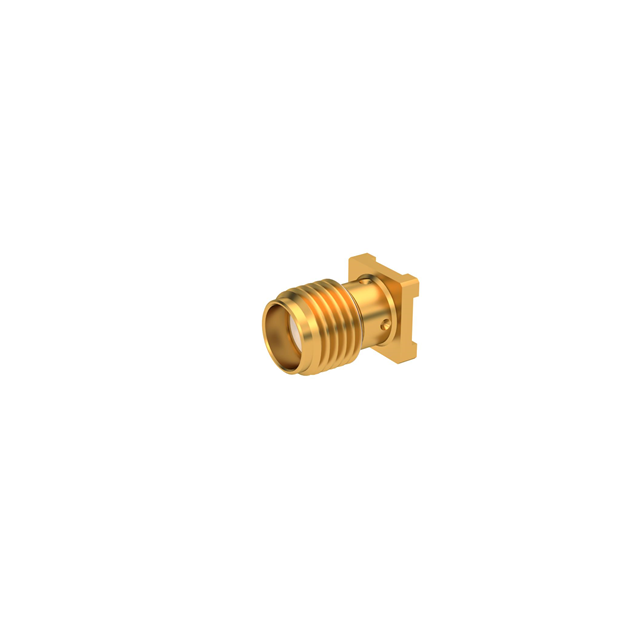

R124427000
ActiveRadiall USA, Inc.
SMACOM F SMT C100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R124427000 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
R12442 Series
| Part | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Dielectric Material | Contact Termination | Shield Termination | Connector Style | Mounting Type | Number of Ports | Housing Color | Body Material | Impedance | Voltage Rating | Center Contact Material | Frequency - Max [Max] | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Female Socket Receptacle | 85 °C | -40 °C | Gold | Polyetheretherketone (PEEK) | Solder | Solder | SMA | Board Edge Cutout Surface Mount | 1 | Gold Silver | Brass | 50 Ohms | 300 VDC | Beryllium Copper | 3 GHz | |
Radiall USA, Inc. | Female Socket Jack | 165 °C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Solder | Solder | SMA | Board Edge End Launch | 1 | Gold | Brass | 50 Ohms | 500 V | Beryllium Copper | 18 GHz | Gold |
Radiall USA, Inc. | Female Socket Jack | 165 °C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Solder | Solder | SMA | Surface Mount | 1 | Gold | Brass | 50 Ohms | 500 V | Beryllium Copper | 18 GHz | Gold |
Radiall USA, Inc. | Female Socket Jack | 165 °C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Solder | Solder | SMA | Surface Mount | 1 | Gold | Brass | 50 Ohms | 500 V | Beryllium Copper | 18 GHz | Gold |
Radiall USA, Inc. | Female Socket Jack | 165 °C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Solder | Solder | SMA | Through Hole | 1 | Gold | Brass | 50 Ohms | 500 V | Beryllium Copper | 18 GHz | Gold |
Radiall USA, Inc. | Female Socket Jack | 165 °C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Solder | Solder | SMA | Through Hole | 1 | Silver | Brass | 50 Ohms | 500 V | Beryllium Copper | 18 GHz | White Bronze |
Radiall USA, Inc. | Female Socket Jack | 165 °C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Solder | Solder | SMA | Surface Mount | 1 | Gold | Brass | 50 Ohms | 500 V | Beryllium Copper | 18 GHz | Gold |
Radiall USA, Inc. | Female Socket Jack | 165 °C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Solder | Solder | SMA | Through Hole | 1 | Gold | Brass | 50 Ohms | 335 V | Beryllium Copper | 18 GHz | Gold |
Radiall USA, Inc. | Female Socket Jack | 165 °C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Solder | Solder | SMA | Board Edge End Launch | 1 | Gold | Brass | 50 Ohms | 500 V | Beryllium Copper | 18 GHz | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.22 | |
| 10 | $ 13.49 | |||
| 25 | $ 12.97 | |||
| 50 | $ 12.45 | |||
| 100 | $ 11.76 | |||
| 300 | $ 10.72 | |||
| 500 | $ 10.03 | |||
| 1000 | $ 9.20 | |||
Description
General part information
R12442 Series
SMA Connector Jack, Female Socket 50 Ohms Surface Mount Solder
