DBLS104GH

Active

Taiwan Semiconductor Corporation

1.1V@1A 1A 400V DBLS BRIDGE RECTIFIERS ROHS

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

1.1V@1A 1A 400V DBLS BRIDGE RECTIFIERS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	DBLS104GH

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	2 µA
Diode Type	Single Phase
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

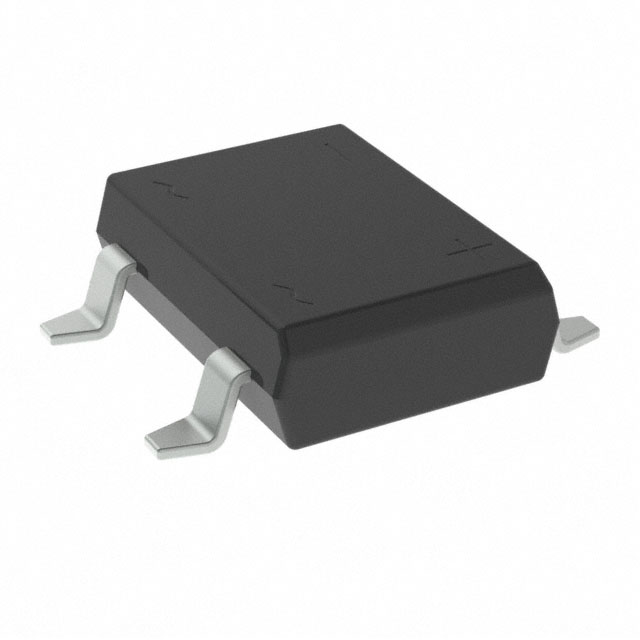

Package / Case	4-SMD, Gull Wing
Qualification	AEC-Q101
Supplier Device Package	DBLS
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Current - Average Rectified (Io)	Diode Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Package / Case	Technology	Grade	Qualification
Taiwan Semiconductor Corporation DBLS104G	-55 °C	150 °C	400 V	DBLS	1 A	Single Phase	1.1 V	2 µA	Surface Mount	4-SMD Gull Wing	Standard
Taiwan Semiconductor Corporation DBLS104GH	-55 °C	150 °C	400 V	DBLS	1 A	Single Phase	1.1 V	2 µA	Surface Mount	4-SMD Gull Wing	Standard	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 400 V Surface Mount DBLS
