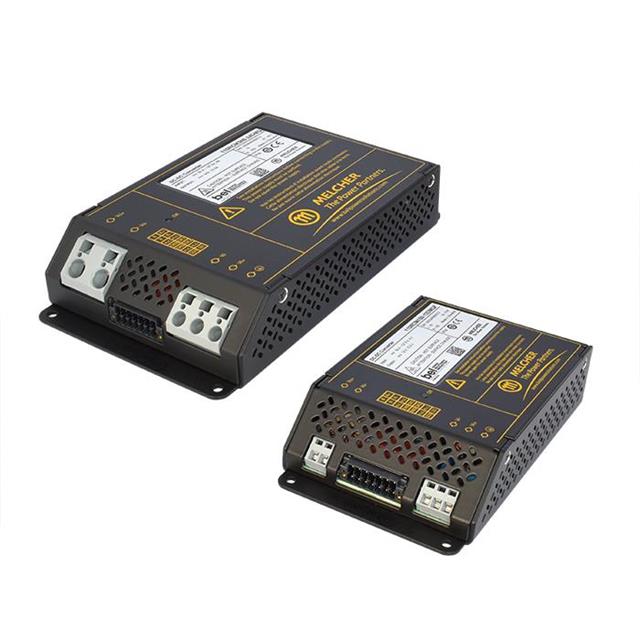

24RCM150-12DMQ
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
24RCM150-12DMQ
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 12V 150W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 24RCM150-12DMQ |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | cCSAus, CE |
| Current - Output (Max) [Max] | 12.5 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 164.5 mm |
| Size / Dimension [x] | 6.48 " |
| Size / Dimension [y] | 96 mm |
| Size / Dimension [y] | 3.78 in |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36.1 mm |
| Standard Number | 62368-1 |
| Type | Conformal Coated, Enclosed |
| Voltage - Input (Max) [Max] | 45 V |
| Voltage - Input (Min) [Min] | 16.8 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 208.21 | |
| 5 | $ 204.85 | |||
| 10 | $ 201.50 | |||
| 25 | $ 188.06 | |||
| 50 | $ 181.35 | |||
Description
General part information
24RCM150 Series
Enclosed, Conformal Coated DC DC Converter 1 Output 12V 12.5A 45V Input
Documents
Technical documentation and resources
No documents available
