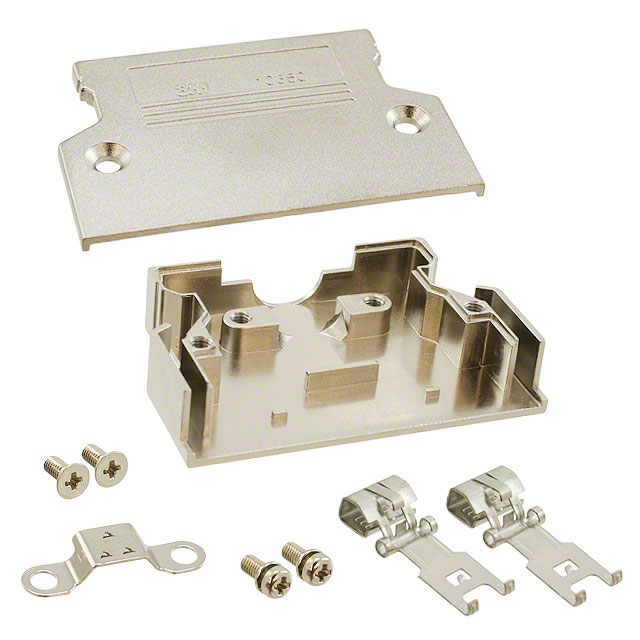

10350-C200-00

Active

3M (TC)

D SUB BACKSHELL, 103 SERIES, 180°, ZINC ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

10350-C200-00

Active

3M (TC)

D SUB BACKSHELL, 103 SERIES, 180°, ZINC ALLOY BODY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10350-C200-00

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Silver
Features	Latch Lock
Material	Zinc Alloy
Number of Positions	50
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

10350 Series

Part	Features	Cable Exit	Cable Type	Color	Material [custom]	Material [custom]	Primary Material	Shielding	Number of Positions	Accessory Type	Plating	Material	Hardware
3M (TC) 10350-3280-000-0	Latch Lock	180 °	Round	Beige	Plastic Steel	Metal	Metal	Shielded	50	Two Piece Backshell and Cover
3M (TC) 10350-3210-000	Latch Lock	180 °	Round	Beige	Plastic Steel	Metal	Metal	Shielded	50	Two Piece Backshell and Cover
3M (TC) 10350-C200-00	Latch Lock	180 °	Round	Silver			Metal	Shielded	50	Two Piece Backshell	Nickel	Zinc Alloy
3M (TC) 10350-3210-003	Latch Lock	180 °	Round	Gray Medium	Plastic Steel	Metal	Metal	Shielded	50	Two Piece Backshell and Cover
3M (TC) 10350-52F0-008	Latch Lock	180 °	Round	Black			Plastic	Unshielded	50	Two Piece Backshell		Polybutylene Terephthalate (PBT) Glass Filled	Assembly Hardware Strain Relief
3M (TC) 10350-3210-006	Latch Lock	180 °	Round	Black	Plastic Steel	Metal	Metal	Shielded	50	Two Piece Backshell and Cover
3M (TC) 10350-3280-000-1	Latch Lock	180 °	Round	Beige	Plastic Steel	Metal	Metal	Shielded	50	Two Piece Backshell and Cover
3M (TC) 10350-32J0-003	Mating Screws 4-40	180 °	Round	Gray	Plastic Steel	Metal	Metal	Shielded	50	Two Piece Backshell and Cover
3M (TC) 10350-32J0-000	Mating Screws 4-40	180 °	Round	Beige	Plastic Steel	Metal	Metal	Shielded	50	Two Piece Backshell and Cover
3M (TC) 10350-52A0-008	Latch Lock	180 °	Round	Black			Plastic	Unshielded	50	Two Piece Backshell		Polybutylene Terephthalate (PBT) Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	3	$ 15.70
		10	$ 15.55
		25	$ 15.41
Digikey	Box	1	$ 16.74
		10	$ 14.51
		25	$ 13.75
		50	$ 13.55
		100	$ 11.95
		300	$ 11.16
		500	$ 10.92
Newark	Each	100	$ 16.66
		250	$ 15.15
		500	$ 14.19
		1000	$ 13.08

Description

General part information

10350 Series

The 103 series Metal Junction Shell made of zinc alloy with nickel plated finish. It comes with the rugged two-piece die-cast metal shells with round straight exit. The reliable metal strain-relief clamp provides grounding for cable shield. It is compatible with 101XX-6000 EC plug and suitable for round cable.
