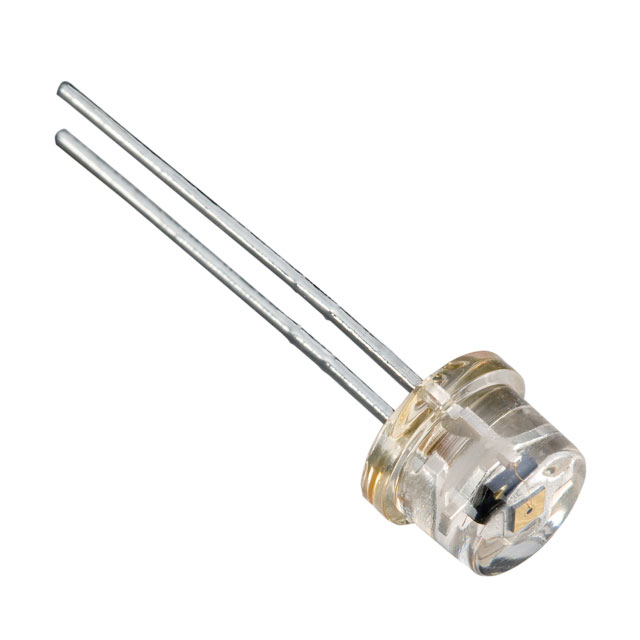

C30724PH
ActiveExcelitas Technologies
SENSOR PHOTODIODE 920NM TO18-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C30724PH
ActiveExcelitas Technologies
SENSOR PHOTODIODE 920NM TO18-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C30724PH |
|---|---|
| Active Area [diameter] | 0.5 mm |
| Current - Dark (Typ) | 20 nA |
| Diode Type | Avalanche |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | TO-18-2 Metal Can |
| Response Time | 5 ns |
| Responsivity @ nm | 8.5 A/W |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 350 V |
| Wavelength | 920 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.75 | |
Description
General part information
C30724 Series
Photodiode 920nm 5ns TO-18-2 Metal Can
