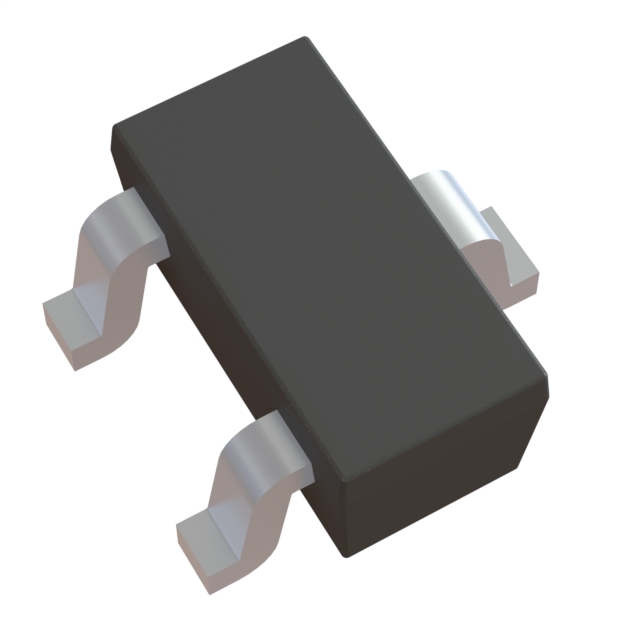

2SA1774E3HZGTLQ

Active

Rohm Semiconductor

TRANS PNP 50V 0.15A EMT3

Search across all available documentation for this part.

Active

Rohm Semiconductor

TRANS PNP 50V 0.15A EMT3

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1774E3HZGTLQ

Current - Collector (Ic) (Max) [Max]	150 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	140 MHz
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SC-75, SOT-416
Power - Max [Max]	150 mW
Qualification	AEC-Q101
Supplier Device Package	EMT3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Transistor Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Package / Case	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Operating Temperature	Mounting Type	Qualification	Grade
Rohm Semiconductor 2SA1774EBTLP	50 V	EMT3F (SOT-416FL)	PNP	150 mW	100 nA	SC-89 SOT-490	140 MHz	120	150 mA	500 mV	150 °C	Surface Mount
Rohm Semiconductor 2SA1774E3HZGTLQ	50 V	EMT3	PNP	150 mW	100 nA	SC-75 SOT-416	140 MHz	120	150 mA	500 mV	150 °C	Surface Mount	AEC-Q101	Automotive
Rohm Semiconductor 2SA1774TLQ	50 V	EMT3	PNP	150 mW	100 nA	SC-75 SOT-416	140 MHz	120	150 mA	500 mV	150 °C	Surface Mount
Rohm Semiconductor 2SA1774EBTLR	50 V	EMT3F (SOT-416FL)	PNP	150 mW	100 nA	SC-89 SOT-490	140 MHz	120	150 mA	500 mV	150 °C	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 50 V 150 mA 140MHz 150 mW Surface Mount EMT3
