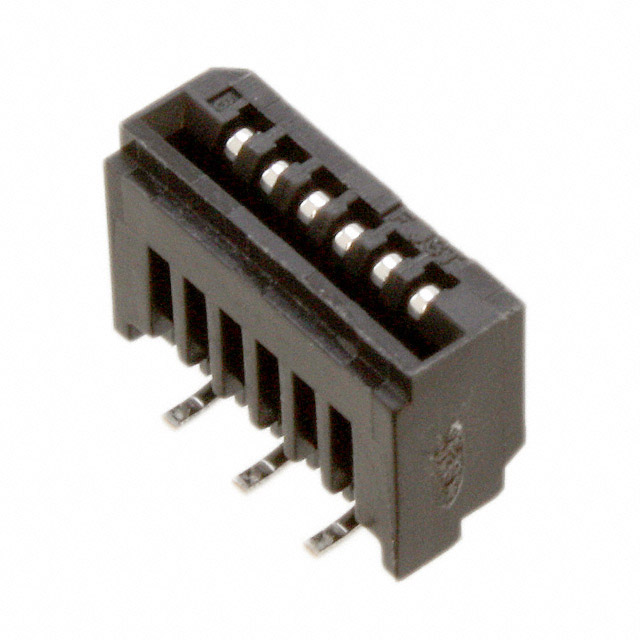

06FMN-BMTTN-A-TF

Active

JST Sales America Inc.

CONN FFC VERT 6POS 1MM SMD

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC VERT 6POS 1MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	06FMN-BMTTN-A-TF

Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	0.201 in
Height Above Board	5.1 mm
Housing Color	Black
Housing Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	50 V

Part	Height Above Board	Height Above Board	Number of Positions	Housing Color	Termination	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Material	Housing Material	Features	Flat Flex Type	Current Rating (Amps)	Cable End Type	Connector/Contact Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness
JST Sales America Inc. 06FMN-BMT-A-TF	0.201 in	5.1 mm	6	Black	Solder	Surface Mount	Tin	0.039 in	1 mm	UL94 V-0	Phosphor Bronze	Polyamide (PA6T) Nylon 6T	Low Insertion Force (LIF)	FFC	0.5 A	Straight	Contacts Vertical - 1 Sided	50 V	-25 °C	85 °C	0.3 mm
JST Sales America Inc. 06FMN-BMTTN-A-TF	0.201 in	5.1 mm	6	Black	Solder	Surface Mount	Tin	0.039 in	1 mm	UL94 V-0	Phosphor Bronze	Polyamide (PA6T) Nylon 6T	Low Insertion Force (LIF)	FFC	0.5 A	Straight	Contacts Vertical - 1 Sided	50 V	-25 °C	85 °C	0.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
