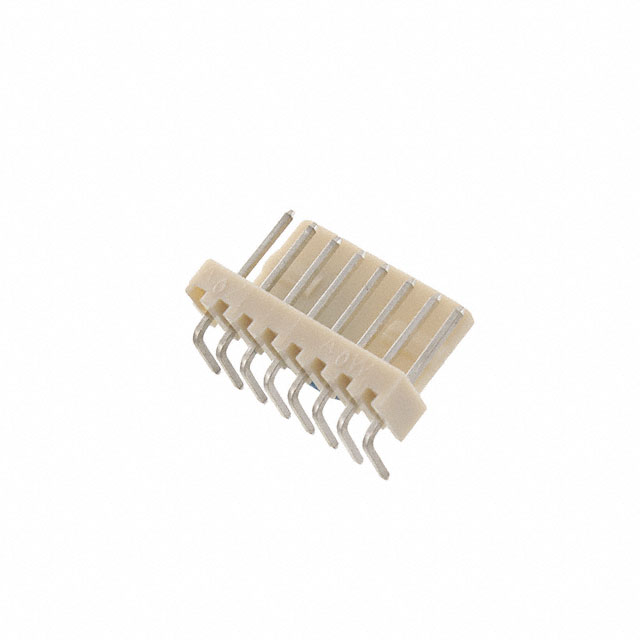

LHA-08-TRB

Active

Adam Tech

CONN HEADER R/A 8POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 8POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHA-08-TRB

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.45 mm
Contact Length - Mating	0.293 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Fastening Type	Mounting Type	Number of Positions Loaded	Insulation Color	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Type	Number of Rows	Style	Shrouding	Number of Positions	Contact Material
Adam Tech LHA-08-TRB	3 A	-25 °C	85 °C	250 VAC	Square	Header	0.1 in	2.54 mm	5.8 mm	0.228 in	UL94 V-2	Friction Lock	Through Hole Right Angle	All	White	Solder	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	7.45 mm	0.293 in	Tin	Male Pin	1	Board to Cable/Wire	Shrouded - 1 Wall	8	Brass
