CTD418-50AC

Active

Allegro MicroSystems

EVAL BOARD FOR CT418

Deep-Dive with AI

DocumentsDatasheet XtremeSense™ TMR technology

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CTD418-50AC

Embedded	False
Interface	Analog
Sensing Range [Max]	50 A
Sensing Range [Min]	-50 A
Sensitivity	40 mV/mT
Sensor Type	Current Sensor
Supplied Contents	Board(s)
Utilized IC / Part	CT418
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.75 V

CT418 Series

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Current - Supply (Max) [Max]	Output	Supplier Device Package	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Linearity	Package / Case	Package / Case [y]	Package / Case [x]	Number of Channels	Mounting Type	For Measuring	Accuracy	Response Time	Polarization	Current - Sensing	Sensitivity	Interface	Sensing Range	Supplied Contents	Utilized IC / Part	Sensing Range [Min]	Sensing Range [Max]
Allegro MicroSystems CT418-HSN850DR	4.75 V	5.5 V	Magnetoresistive	9 mA	Ratiometric Voltage	8-SOIC	DC ~ 1MHz	125 °C	-40 °C	0.2 %	8-SOIC	3.9 mm	0.154 in	1	Surface Mount	AC/DC	1 %	300 ns	Unidirectional	50 A	80 mV/A
Allegro MicroSystems CT418-HSN830MR	4.75 V	5.5 V	Magnetoresistive	9 mA	Ratiometric Voltage	8-SOIC	DC ~ 1MHz	125 °C	-40 °C	0.1 %	8-SOIC	3.9 mm	0.154 in	1	Surface Mount	AC/DC	0.5 %	300 ns	Bidirectional	30 A	66.7 mV/A
Allegro MicroSystems CT418-HSN865DR	4.75 V	5.5 V	Magnetoresistive	9 mA	Ratiometric Voltage	8-SOIC	DC ~ 1MHz	125 °C	-40 °C	0.2 %	8-SOIC	3.9 mm	0.154 in	1	Surface Mount	AC/DC	1 %	300 ns	Unidirectional	65 A	61.5 mV/A
Allegro MicroSystems CT418-HSN865MR	4.75 V	5.5 V	Magnetoresistive	9 mA	Ratiometric Voltage	8-SOIC	DC ~ 1MHz	125 °C	-40 °C	0.2 %	8-SOIC	3.9 mm	0.154 in	1	Surface Mount	AC/DC	1 %	300 ns	Bidirectional	65 A	30.8 mV/A
Allegro MicroSystems CT418-HSN850MR	4.75 V	5.5 V	Magnetoresistive	9 mA	Ratiometric Voltage	8-SOIC	DC ~ 1MHz	125 °C	-40 °C	0.1 %	8-SOIC	3.9 mm	0.154 in	1	Surface Mount	AC/DC	1 %	300 ns	Bidirectional	50 A	40 mV/mT
Allegro MicroSystems CTD418-50DC	4.75 V	5.5 V	Current Sensor																		80 mV/A	Analog	50 A	Board(s)	CT418
Allegro MicroSystems CT418-HSN820DR	4.75 V	5.5 V	Magnetoresistive	9 mA	Ratiometric Voltage	8-SOIC	DC ~ 1MHz	125 °C	-40 °C	0.2 %	8-SOIC	3.9 mm	0.154 in	1	Surface Mount	AC/DC	1 %	300 ns	Unidirectional	20 A	200 mV/A
Allegro MicroSystems CTD418-50AC	4.75 V	5.5 V	Current Sensor																		40 mV/mT	Analog		Board(s)	CT418	-50 A	50 A
Allegro MicroSystems CT418-HSN820MR	4.75 V	5.5 V	Magnetoresistive	9 mA	Ratiometric Voltage	8-SOIC	DC ~ 1MHz	125 °C	-40 °C	0.1 %	8-SOIC	3.9 mm	0.154 in	1	Surface Mount	AC/DC	1 %	300 ns	Bidirectional	20 A	100 mV/g
Allegro MicroSystems CT418-HSN830DR	4.75 V	5.5 V	Magnetoresistive	9 mA	Ratiometric Voltage	8-SOIC	DC ~ 1MHz	125 °C	-40 °C	0.1 %	8-SOIC	3.9 mm	0.154 in	1	Surface Mount	AC/DC	1 %	300 ns	Unidirectional	30 A	133.3 mV/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.22

Description

General part information

CT418 Series

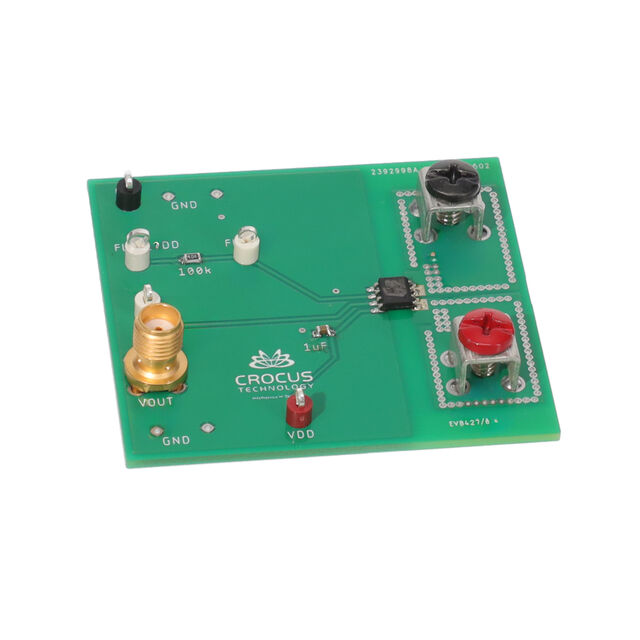

CT418 XtremeSense™ Crocus Technology Current Sensor Sensor Evaluation Board
