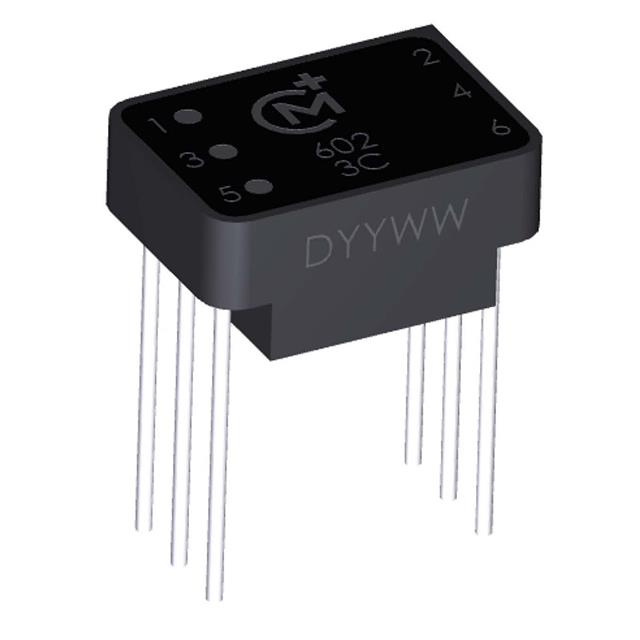

76600/4C

Obsolete

Murata Power Solutions Inc.

PULSE XFMR 1:1 50UH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

PULSE XFMR 1:1 50UH

Technical Specifications

Parameters and characteristics for this part

Specification	76600/4C

ET (Volt-Time)	4 VµS
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Inductance	50 µH
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.7 mm
Size / Dimension [y]	8.89 mm
Size / Dimension [y]	0.35 "
Transformer Type	General Purpose
Turns Ratio - Primary:Secondary	1:1

Part	ET (Volt-Time)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Turns Ratio - Primary:Secondary	Height - Seated (Max)	Height - Seated (Max) [Max]	Transformer Type	Inductance
Murata Power Solutions Inc. 76600/3C	5.5 VµS	70 °C	0 °C	0.5 in	8.89 mm	12.7 mm	0.35 "	Through Hole	1:1	6.35 mm	0.25 in	General Purpose	219 µH
Murata Power Solutions Inc. 76600/4C	4 VµS	70 °C	0 °C	0.5 in	8.89 mm	12.7 mm	0.35 "	Through Hole	1:1	6.35 mm	0.25 in	General Purpose	50 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50µH General Purpose Pulse Transformer 1:1 Through Hole
