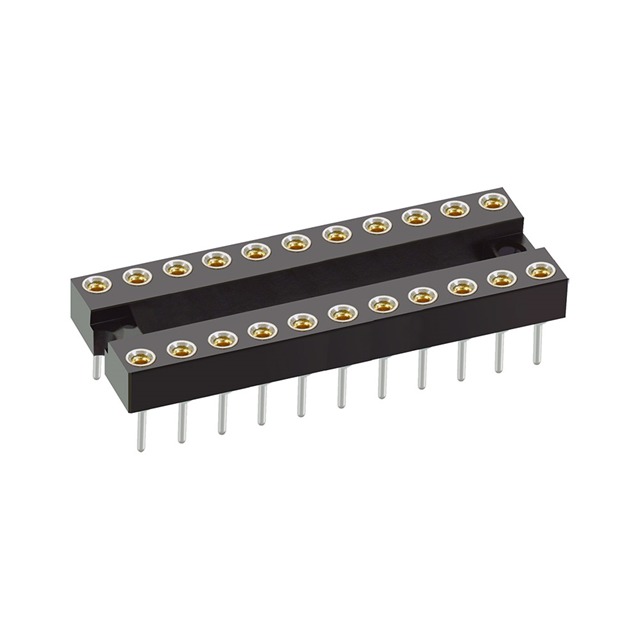

11+11 POS. FEMALE DIL VERTICAL THROUGHBOARD IC SOCKET ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

11+11 POS. FEMALE DIL VERTICAL THROUGHBOARD IC SOCKET ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	D2922-42

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	196.9 µin
Contact Finish Thickness - Post	5 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	22
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.2 mm
Termination Post Length	0.126 in
Type	0.4 in
Type	10.16 mm
Type	DIP

Part	Housing Material	Pitch - Post	Pitch - Post	Features	Contact Resistance	Current Rating (Amps)	Contact Finish Thickness - Mating	Type	Type	Type	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Contact Finish - Mating	Mounting Type	Contact Material - Mating	Termination Post Length	Termination Post Length	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)
Harwin Inc. D2922-42	Plastic	2.54 mm	0.1 in	Open Frame	10 mOhm	1 A	Flash	0.4 in	10.16 mm	DIP	Brass	-55 °C	125 °C	Solder	UL94 V-0	Gold	Through Hole	Beryllium Copper	3.2 mm	0.126 in	Tin	196.9 µin	5 µm	0.1 in	2.54 mm	22

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1944	$ 1.59
Newark	Each	1000	$ 1.91
		2500	$ 1.73

General part information

22 (2 x 11) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Through Hole
