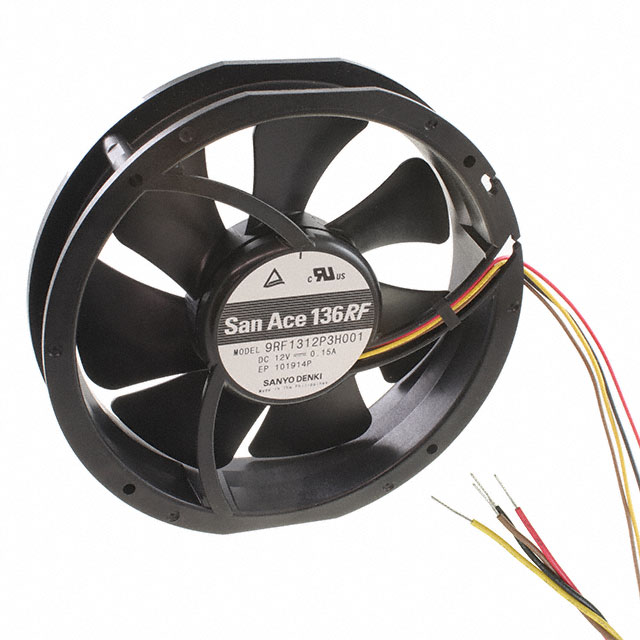

9RF1312P3H001

Active

Sanyo Denki America Inc.

FAN AXIAL 136X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 136X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9RF1312P3H001

Air Flow	1.98 mł/min
Air Flow	70.7 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach), Reversible Flow
Lifetime @ Temp.	Varies Based on Temperature
Material - Blade	Plastic
Material - Frame	Plastic
Noise	35 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.8 W
RPM	3100 RPM
Size / Dimension [diameter]	136 mm
Static Pressure	102.1 Pa
Static Pressure	0.41 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	220 g
Weight	0.485 lb
Width [y]	28 mm

Part	Size / Dimension [diameter]	Air Flow	Air Flow	Voltage - Rated	Lifetime @ Temp.	Static Pressure	Static Pressure	RPM	Material - Blade	Fan Type	Material - Frame	Termination	Current Rating (Amps)	Noise	Width [y]	Features	Power (Watts)	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Sanyo Denki America Inc. 9RF1312P3H001	136 mm	1.98 mł/min	70.7 CFM	12 VDC	Varies Based on Temperature	102.1 Pa	0.41 in H2O	3100 RPM	Plastic	Tubeaxial	Plastic	4 Wire Leads	150 mA	35 dB	28 mm	Locked Rotor Protection PWM Control Reversible Flow Speed Sensor (Tach)	1.8 W	CSA TUV UL	10.2 VDC	13.8 VDC	Ball	220 g	0.485 lb	-20 °C	70 °C	-20 C	70 °C
