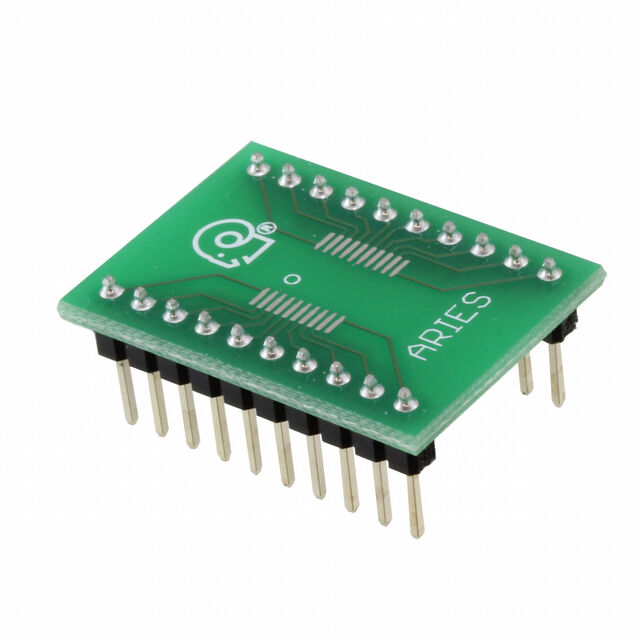

LCQT-TSSOP20
ActiveAries Electronics
SOCKET ADAPTER TSSOP TO 20DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCQT-TSSOP20
ActiveAries Electronics
SOCKET ADAPTER TSSOP TO 20DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCQT-TSSOP20 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 0.0625 in |
| Board Thickness | 1.57 mm |
| Material | FR4 Epoxy Glass |
| Number of Positions | 20 |
| Package Accepted | TSSOP |
| Pitch [x] | 0.026 in |
| Pitch [x] | 0.65 mm |
| Proto Board Type | SMD to DIP |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 17.78 mm |
| Size / Dimension [y] | 0.7 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.35 | |
| 24 | $ 5.74 | |||
| 48 | $ 5.29 | |||
| 120 | $ 5.03 | |||
| 264 | $ 4.50 | |||
| 504 | $ 4.23 | |||
| 1008 | $ 3.70 | |||
| 2520 | $ 3.52 | |||
Description
General part information
LCQT-TS Series
SOCKET ADAPTER TSSOP TO 20DIP
