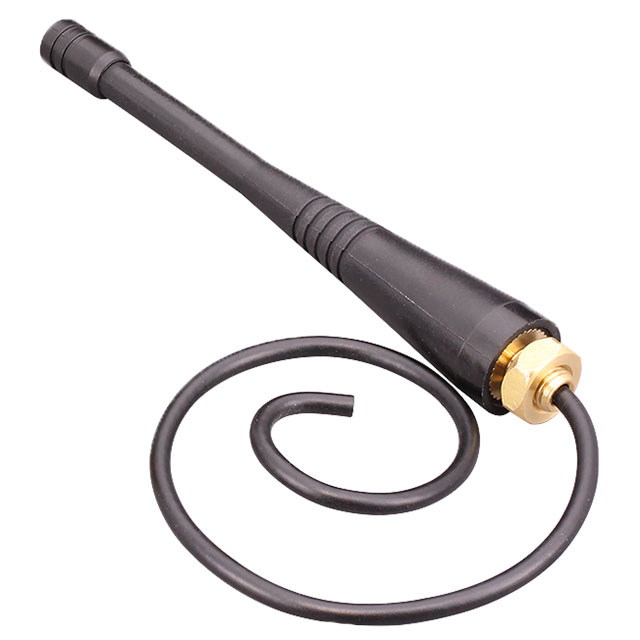

ANT-B28-PW-QW
ActiveTE Connectivity Linx
RF ANT LTE B28 WHIP STR CAB PAN
Deep-Dive with AI
Search across all available documentation for this part.
ANT-B28-PW-QW
ActiveTE Connectivity Linx
RF ANT LTE B28 WHIP STR CAB PAN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-B28-PW-QW |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Cellular, UMTS, NB-IoT, GSM, LTE |
| Features | True |
| Features | 216 mm |
| Frequency (Center/Band) | 750 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 810 MHz |
| Frequency Range [Min] | 700 MHz |
| Gain | 1.7 dBi |
| Height (Max) [Max] | 3.874 in |
| Height (Max) [Max] | 98.4 mm |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 2.7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 7.72 | |
Description
General part information
ANT-B28 Series
RF ANTENNA Cellular, GSM, LTE, NB-IoT, UMTS Whip, Straight Solder Panel Mount
