M5244-000004-100PG

Active

TE Connectivity Measurement Specialties

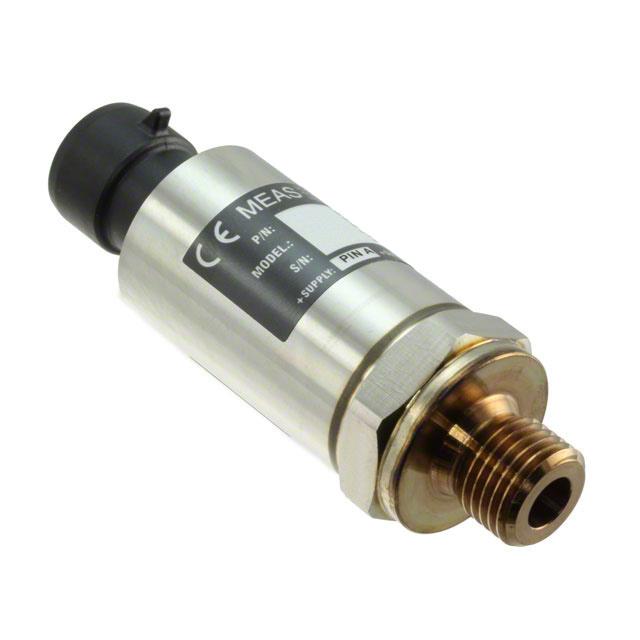

TRANSDUCER 1-5VDC 100PSI

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

TRANSDUCER 1-5VDC 100PSI

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Output Type	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Output [Min]	Output [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Package / Case	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Accuracy	Operating Pressure	Operating Pressure	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]
TE Connectivity Measurement Specialties M5244-000002-350BG	Industrial Automation	Analog Voltage	BSPP Male	6.35 mm	125 °C	-40 °C	Threaded	1 V	5 V	30 VDC	8 V	Temperature Compensated	Cylinder	Vented Gauge	70000 kPa	10152.64 PSI	Connector	0.25 %	5076.32 PSI	35000 kPa
TE Connectivity Measurement Specialties M5244-000004-100PG	Industrial Automation	Analog Voltage	Male UNF	0.4375 " 11.11 mm	125 °C	-40 °C	Threaded	1 V	5 V	30 VDC	8 V	Temperature Compensated	Cylinder	Vented Gauge	1378.95 kPa	200 PSI	Connector	0.25 %	100 PSI	689.48 kPa
TE Connectivity Measurement Specialties M5244-000005-01KPG	Industrial Automation	Analog Voltage			125 °C	-40 °C	Threaded	1 V	5 V	30 VDC	8 V	Temperature Compensated	Cylinder	Vented Gauge	13789.51 kPa	2000 PSI	Connector	0.25 %	1000 PSI	6894.76 kPa	NPT	0.25 "	6.35 mm	Male
TE Connectivity Measurement Specialties M5244-000004-050PG	Industrial Automation	Analog Voltage	Male UNF	0.4375 " 11.11 mm	125 °C	-40 °C	Threaded	1 V	5 V	30 VDC	8 V	Temperature Compensated	Cylinder	Vented Gauge	689.48 kPa	100 PSI	Connector	0.25 %	50 PSI	344.74 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRANSDUCER 1-5VDC 100PSI

Technical documentation and resources
