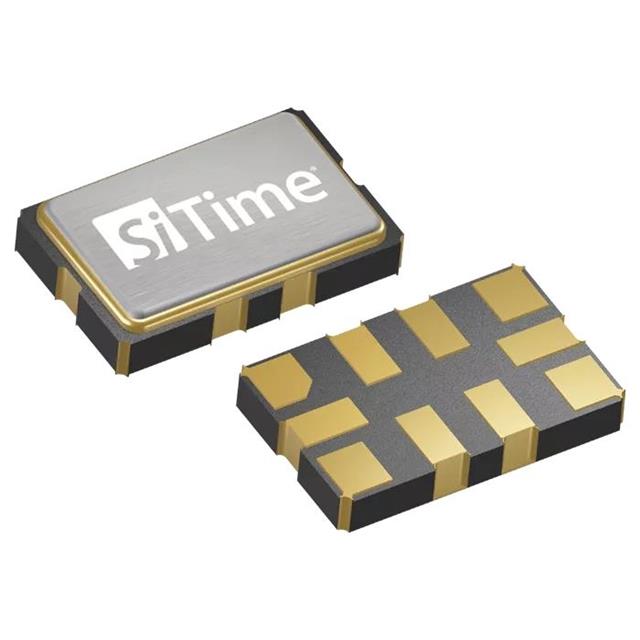

SIT5346AE-FQ025ITB25.000000

Active

SiTime

MEMS OSC TCXO 25.000000 MHZ LVCM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT5346AE-FQ025ITB25.000000

Active

SiTime

MEMS OSC TCXO 25.000000 MHZ LVCM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT5346AE-FQ025ITB25.000000

Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	51 mA
Frequency	25 MHz
Frequency Stability	100 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.042 in
Height - Seated (Max) [Max] [z]	1.06 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output	LVCMOS
Package / Case	10-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	DCTCXO
Voltage - Supply	2.5 V

SIT5346 Series

Part	Current - Supply (Disable) (Max) [Max]	Frequency Stability	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Base Resonator	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Function	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Supply	Output	Mounting Type	Absolute Pull Range (APR)
SiTime SIT5346AI-FQG33IQA40.000000	51 mA	100 ppb	0.042 in	1.06 mm	DCTCXO	MEMS	40 MHz	85 °C	-40 °C	10-SMD No Lead	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	LVCMOS	Surface Mount
SiTime SIT5346AICFQ-33E0A40.000000	51 mA	100 ppb	0.042 in	1.06 mm	TCXO	MEMS	40 MHz	85 °C	-40 °C	10-SMD No Lead	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	Clipped Sine Wave	Surface Mount
SiTime SIT5346AI-FQ-33E0A60.000000	51 mA	100 ppb	0.042 in	1.06 mm	TCXO	MEMS	60 MHz	85 °C	-40 °C	10-SMD No Lead	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	LVCMOS	Surface Mount
SiTime SIT5346AI-FNG33JTA36.864000		250 ppb	0.042 in	1.06 mm	DCTCXO	MEMS	36.864 MHz	85 °C	-40 °C	10-SMD No Lead		0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	LVCMOS	Surface Mount	3 ppm
SiTime SIT5346AE-FQ025ITB25.000000	51 mA	100 ppm	0.042 in	1.06 mm	DCTCXO	MEMS	25 MHz	105 ░C	-40 °C	10-SMD No Lead	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	2.5 V	LVCMOS	Surface Mount
SiTime SIT5346AICFQ-33E0A24.192000	51 mA	100 ppb	0.042 in	1.06 mm	TCXO	MEMS	24.192 MHz	85 °C	-40 °C	10-SMD No Lead	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	Clipped Sine Wave	Surface Mount
SiTime SIT5346AE-FQ-33N0B24.000000		100 ppb	0.042 in	1.06 mm	TCXO	MEMS	24 MHz	105 ░C	-40 °C	10-SMD No Lead		0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	LVCMOS	Surface Mount
SiTime SIT5346AICFQ033ITB10.000000	51 mA	100 ppb	0.042 in	1.06 mm	DCTCXO	MEMS	10 MHz	85 °C	-40 °C	10-SMD No Lead	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	Clipped Sine Wave	Surface Mount
SiTime SIT5346AI-FNG33IQA40.000000	51 mA	250 ppb	0.042 in	1.06 mm	DCTCXO	MEMS	40 MHz	85 °C	-40 °C	10-SMD No Lead	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	LVCMOS	Surface Mount	9.25 ppm
SiTime SIT5346ACCFQ-33E0B24.000000	51 mA	100 ppb	0.042 in	1.06 mm	TCXO	MEMS	24 MHz	70 °C	-20 C	10-SMD No Lead	Enable/Disable	0.197 in	0.126 "	3.2 mm	5 mm	3.3 V	Clipped Sine Wave	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	10	$ 562.17

Description

General part information

SIT5346 Series

25 MHz DCTCXO LVCMOS Oscillator 2.5V Enable/Disable 10-SMD, No Lead

Documents

Technical documentation and resources
