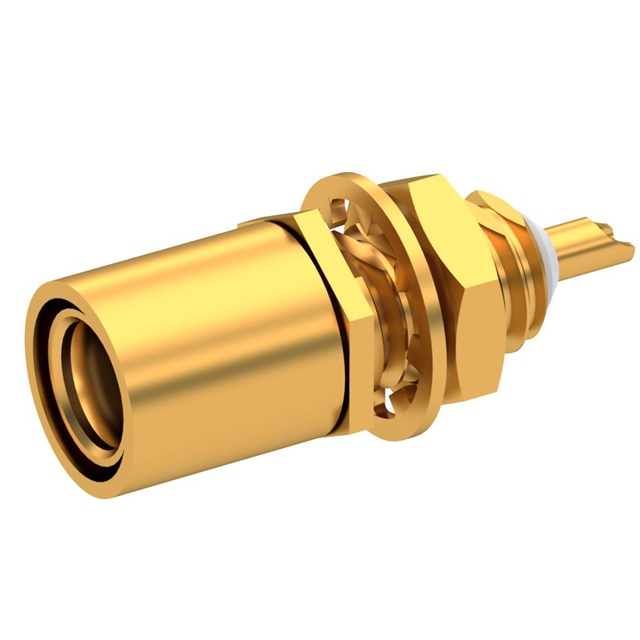

SMB F STR BHD SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F STR BHD SP

Technical Specifications

Parameters and characteristics for this part

Specification	2017-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Dielectric Material	Center Contact Plating	Center Contact Material	Body Material	Body Finish	Mating Cycles	Number of Ports	Contact Termination	Impedance	Frequency - Max [Max]	Connector Style	Housing Color	Mounting Feature	Shield Termination	Connector Type	Includes	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. 2017-1511-000	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	Brass	Gold	500	1	Solder Cup	50 Ohms	4 GHz	SMB	Gold	Bulkhead - Rear Side Nut	Solder	Female Socket Plug	1 Connector 1 Lockwasher 1 Nut	Snap-On	-65 ░C	165 °C
