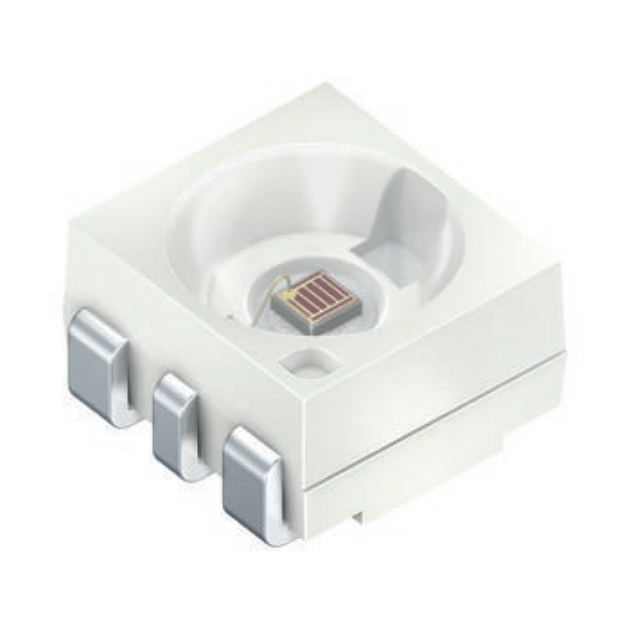

LR G6SP.01-6D7E-46-G3R3-140-R18-Z
Activeams-OSRAM USA INC.
LED TOPLED RED 623NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LR G6SP.01-6D7E-46-G3R3-140-R18-Z
Activeams-OSRAM USA INC.
LED TOPLED RED 623NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LR G6SP.01-6D7E-46-G3R3-140-R18-Z |
|---|---|
| Color | Red |
| Current - Max [Max] | 200 mA |
| Current - Test | 140 mA |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lumens/Watt @ Current - Test | 75 lm/W |
| Luminous Flux @ Current/Temperature | 23 lm |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD |
| Size / Dimension [x] | 3.3 mm |
| Size / Dimension [x] | 0.13 in |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Thermal Resistance of Package [custom] | 50 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength | 623 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.21 | |||
| Tape & Reel (TR) | 1000 | $ 0.17 | ||
| 2000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
LRG6SP Series
LED Lighting Color Advanced Power TOPLED® Red 623nm (Typ) 6-SMD
