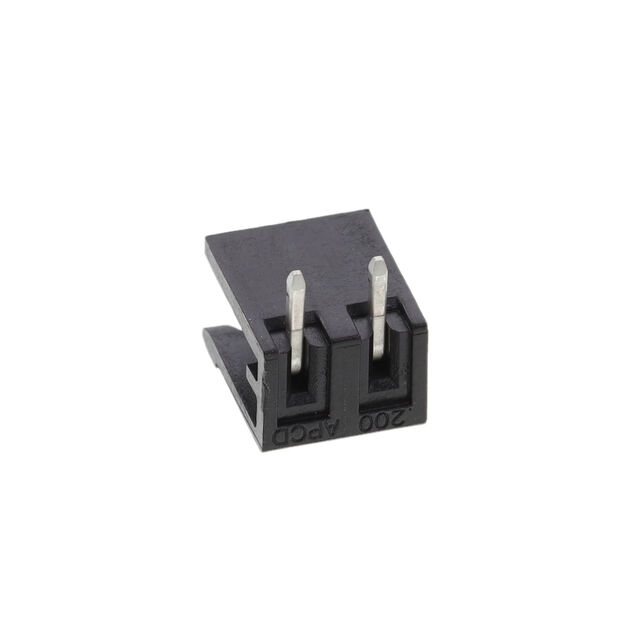

ELFH02220

Active

AMPHENOL PCD

TERM BLOCK HDR 2POS 90DEG 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 2POS 90DEG 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH02220

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.94 mm
Contact Tail Length	0.155 in
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - UL	300 V

Part	Insulation Height	Insulation Height	Positions Per Level	Voltage - UL	Color	Housing Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Type	Contact Mating Finish	Contact Material	Number of Positions	Termination Style	Pitch [x]	Pitch [x]	Number of Levels	Header Orientation	Contact Tail Length	Contact Tail Length	Insulation Height [z]
AMPHENOL PCD ELFH02230	8.1 mm	0.319 in	2	300 V	Black	Polyamide (PA46) Nylon 4/6	Through Hole	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	Tin	Brass	2	Solder	0.2 in	5.08 mm	1	90° Right Angle
AMPHENOL PCD ELFH02220	8.1 mm	0.319 in	2	300 V	Black	Polybutylene Terephthalate (PBT)	Through Hole	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (2 Side)	Tin	Brass	2	Solder	0.2 in	5.08 mm	1	90° Right Angle	3.94 mm	0.155 in
AMPHENOL PCD ELFH02260	12.07 mm		2	300 V	Black	Polybutylene Terephthalate (PBT)	Through Hole	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (2 Side)	Tin	Brass	2	Solder	0.2 in	5.08 mm	1	Vertical	3.94 mm	0.155 in	0.475 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.96

General part information

2 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
