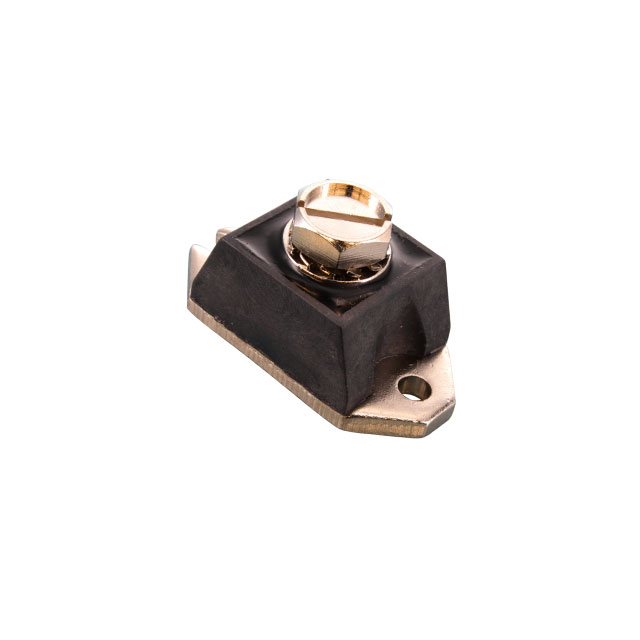

185NQ015R-1

Active

SMC Diode Solutions

DIODE SCHOTTKY 15V 180A PRM1-1

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 15V 180A PRM1-1

Technical Specifications

Parameters and characteristics for this part

Specification	185NQ015R-1

Capacitance @ Vr, F	10000 pF
Current - Average Rectified (Io)	180 A
Current - Reverse Leakage @ Vr	60 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	HALF-PAK
Speed	200 mA, 500 ns
Supplier Device Package	PRM1-1 (Half Pak Module)
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	400 mV

Part	Mounting Type	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Speed	Supplier Device Package	Current - Average Rectified (Io)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Package / Case	Technology	Voltage - Forward (Vf) (Max) @ If
SMC Diode Solutions 185NQ015R-1	Chassis Mount	60 mA	10000 pF	200 mA 500 ns	PRM1-1 (Half Pak Module)	180 A	-55 °C	125 °C	HALF-PAK	Schottky	400 mV
SMC Diode Solutions 185NQ015-1	Chassis Mount	60 mA	12300 pF	200 mA 500 ns	PRM1-1 (Half Pak Module)	180 A	-55 C	175 ░C	HALF-PAK	Schottky	400 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 15 V 180A Chassis Mount PRM1-1 (Half Pak Module)
