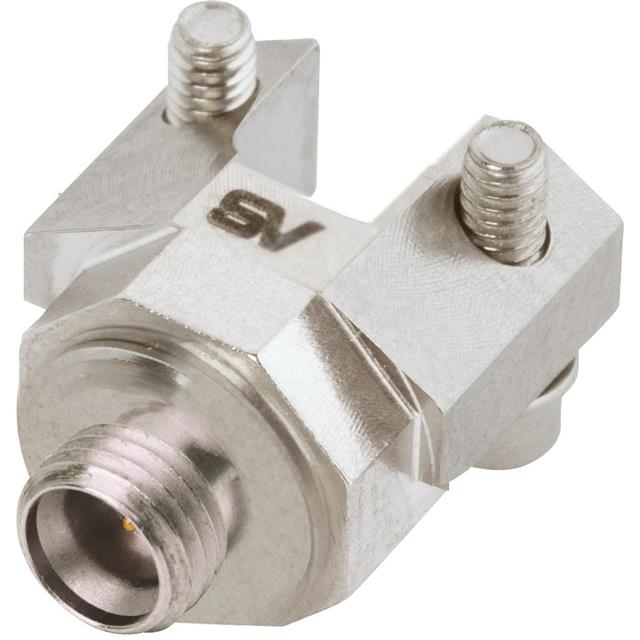

3211-60407-2S

Active

Amphenol SV Microwave

THREADED SMPM MALE SOLDERLESS PC

Deep-Dive with AI

Search across all available documentation for this part.

3211-60407-2S

Active

Amphenol SV Microwave

THREADED SMPM MALE SOLDERLESS PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3211-60407-2S

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Plug
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Smooth Bore
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

3211-60 Series

Part	Connector Type	Features	Body Finish	Number of Ports	Mounting Type	Impedance	Shield Termination	Fastening Type	Connector Style	Frequency - Max [Max]	Center Contact Material	Housing Color	Body Material	Center Contact Plating	Contact Termination	Cable Group	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Mating Cycles
Amphenol SV Microwave 3211-60327	Male Pin Plug	Smooth Bore	Gold	1	Free Hanging (In-Line)	50 Ohms	Solder	Snap-On	SMPM	40 GHz	Beryllium Copper	Gold Silver	Stainless Steel	Gold	Solder	RG-405 (.085" Semi Rigid)	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 3211-60028	Male Pin Plug	Smooth Bore	Gold	1	Free Hanging (In-Line)	50 Ohms	Solder	Snap-On	SMPM	65 GHz	Cobalt Iron Nickel	Gold	Cobalt Iron Nickel	Gold	Solder			165 °C	-55 °C
Amphenol SV Microwave 3211-60087	Male Pin Plug	Full Detent	Gold	2	Board Edge Cutout Surface Mount	50 Ohms	Solder	Snap-On	SMPM	65 GHz	Beryllium Copper	Gold	Stainless Steel	Gold	Solder		Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 3211-60351	Male Pin Plug	Smooth Bore	Gold	1	Free Hanging (In-Line)	50 Ohms	Crimp	Snap-On	SMPM	40 GHz	Beryllium Copper	Gold Silver	Stainless Steel	Gold	Crimp	Semi Rigid	Polytetrafluoroethylene (PTFE)			0.047 in
Amphenol SV Microwave 3211-60035	Male Pin Plug	Smooth Bore	Gold	1	Board Edge Cutout Surface Mount	50 Ohms	Solder	Snap-On	SMPM	40 GHz	Beryllium Copper	Gold	Stainless Steel	Gold	Solder		Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 3211-60307	Male Pin Plug	Pre-Tinned (J-STD-001) Smooth Bore	Gold	1	Board Edge Cutout Surface Mount	50 Ohms	Solder	Snap-On	SMPM	40 GHz	Beryllium Copper	Gold	Stainless Steel	Gold	Solder		Polytetrafluoroethylene (PTFE)	165 °C	-65 ░C		500
Amphenol SV Microwave 3211-60326	Male Pin Plug	Smooth Bore	Gold	1	Free Hanging (In-Line)	50 Ohms	Solder	Snap-On	SMPM	40 GHz	Beryllium Copper	Gold Silver	Stainless Steel	Gold	Solder	Semi Rigid	Polytetrafluoroethylene (PTFE)			0.047 in
Amphenol SV Microwave 3211-60180	Male Pin Plug	Catcher's Mitt	Gold	8	Board Edge End Launch Right Angle Through Hole	50 Ohms	Solder	Snap-On	SMPM	65 GHz	Beryllium Copper	Gold	Stainless Steel	Gold	Solder		Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 3211-60027	Male Pin Plug	Full Detent	Gold	1	Free Hanging (In-Line)	50 Ohms	Solder	Snap-On	SMPM	40 GHz	Cobalt Iron Nickel	Gold	Cobalt Iron Nickel	Gold	Solder			165 °C	-55 °C
Amphenol SV Microwave 3211-60407-2S	Male Pin Plug	Smooth Bore		1	Board Edge End Launch	50 Ohms	Screw		SMPM	40 GHz	Beryllium Copper	Silver	Stainless Steel	Gold	Compression		Polytetrafluoroethylene (PTFE)	165 °C	-65 ░C		500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 171.59
		25	$ 153.29

Description

General part information

3211-60 Series

SMPM Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Compression

Documents

Technical documentation and resources

No documents available
