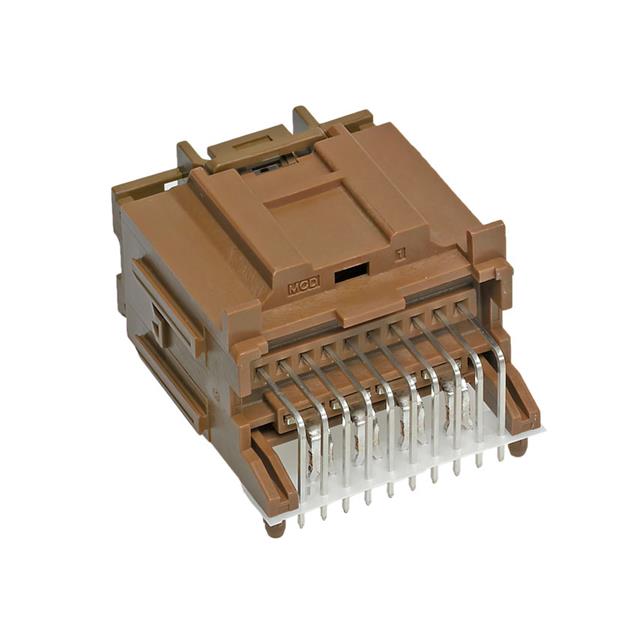

0347730141
ActiveMolex
CONN HEADER R/A 14POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsStac64 Connection System
0347730141
ActiveMolex
CONN HEADER R/A 14POS
Deep-Dive with AI
DocumentsStac64 Connection System
Technical Specifications
Parameters and characteristics for this part
| Specification | 0347730141 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Shape | Square, Rectangular |
| Contact Type | Male Pin, Male Blade |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Gray |
| Insulation Height | 22.05 mm |
| Insulation Height | 0.868 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.47 | |
| 10 | $ 5.66 | |||
| 80 | $ 4.58 | |||
| 1120 | $ 3.78 | |||
Description
General part information
034773 Series
Connector Header Through Hole, Right Angle 14 (10 + 4 Power) position
