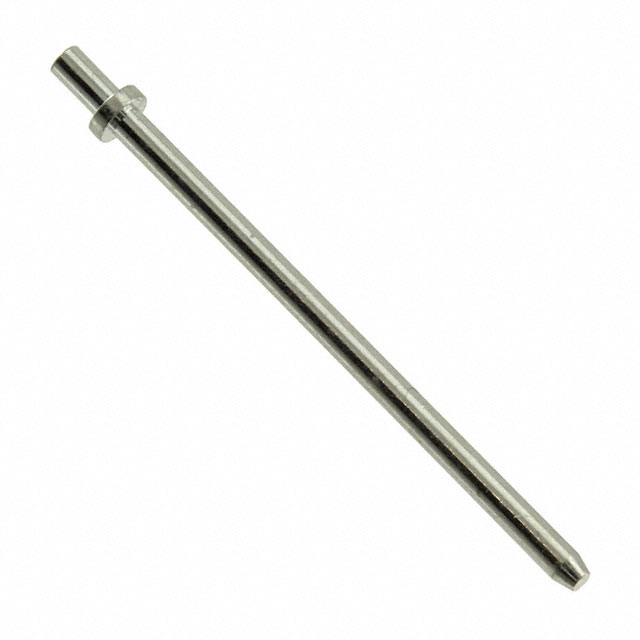

H2171-01

Active

Harwin Inc.

TERMINAL, PIN, 1.09MM, 21.64MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

TERMINAL, PIN, 1.09MM, 21.64MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2171-01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass
Flange Diameter [diameter]	1.77 mm
Flange Diameter [diameter]	0.07 in
Insulation	Non-Insulated
Length - Above Flange [x]	19.05 mm
Length - Above Flange [x]	0.75 in
Length - Below Flange [x]	0.082 in
Length - Below Flange [x]	2.08 mm
Length - Overall [x]	21.64 mm
Length - Overall [x]	0.852 "
Mounting Hole Diameter [Max]	0.045 "
Mounting Hole Diameter [Max]	1.14 mm
Mounting Hole Diameter [Min]	0.041 in
Mounting Hole Diameter [Min]	1.04 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.041 in
Pin Size - Above Flange [diameter]	1.04 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Contact Finish	Insulation	Length - Above Flange [x]	Length - Above Flange [x]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Type	Length - Below Flange [x]	Length - Below Flange [x]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Terminal Style	Terminal Type	Board Thickness	Board Thickness	Contact Material	Length - Overall [x]	Length - Overall [x]
Harwin Inc. H2171-01	Tin	Non-Insulated	19.05 mm	0.75 in	0.041 in	1.04 mm	Swage	1.77 mm	0.07 in	Through Hole	0.082 in	2.08 mm	0.045 "	1.14 mm	0.041 in	1.04 mm	Single End	PC Pin	1.6 mm	0.063 in	Brass	21.64 mm	0.852 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PC Pin Terminal Connector Through Hole Tin 0.041" (1.04mm) Dia
