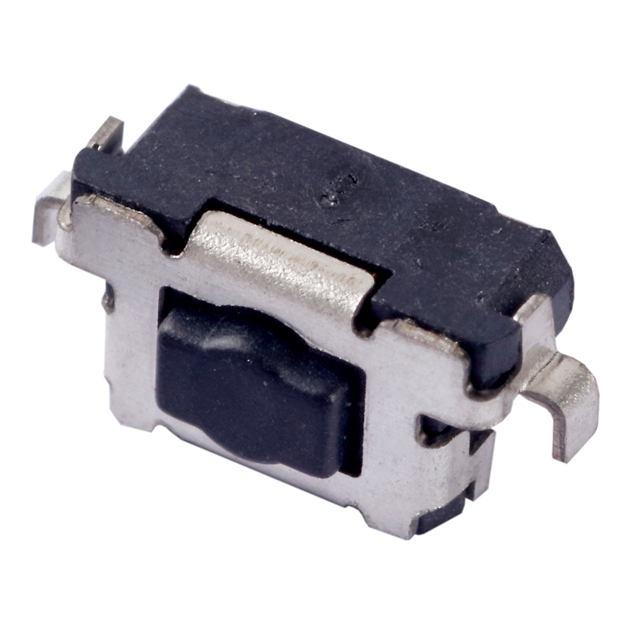

222HMSAARK

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Features	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Length, Right Angle	Termination Style	Operating Force	Contact Rating @ Voltage	Actuator Type	Actuator Orientation	Mechanical Life	Illumination	Switch Travel	Switch Function	Circuit
Tusonix a Subsidiary of CTS Electronic Components 222HMSAARK	Tactile Feedback	2.55 mm	7.3 mm	85 °C	-40 °C	Edge Mount Right Angle	2.1 mm	SMD (SMT) Tab	120 gf	0.05 A 12 VDC	Rectangular Button	Side Actuated	1000000 Cycles	Non-Illuminated	0.15 mm	Off-Mom	SPST-NO
Tusonix a Subsidiary of CTS Electronic Components 222HMSAAR	Tactile Feedback	2.55 mm	6.2 mm	85 °C	-40 °C	Edge Mount Right Angle	2.1 mm	SMD (SMT) Tab	120 gf	0.05 A 12 VDC	Rectangular Button	Side Actuated	1000000 Cycles	Non-Illuminated	0.15 mm	Off-Mom	SPST-NO
Tusonix a Subsidiary of CTS Electronic Components 222HMSACR	Tactile Feedback	2.55 mm	6.2 mm	85 °C	-40 °C	Edge Mount Right Angle	2.1 mm	SMD (SMT) Tab	240 gf	0.05 A 12 VDC	Rectangular Button	Side Actuated	500000 Cycles	Non-Illuminated	0.15 mm	Off-Mom	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10800	$ 0.26

General part information

Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle
