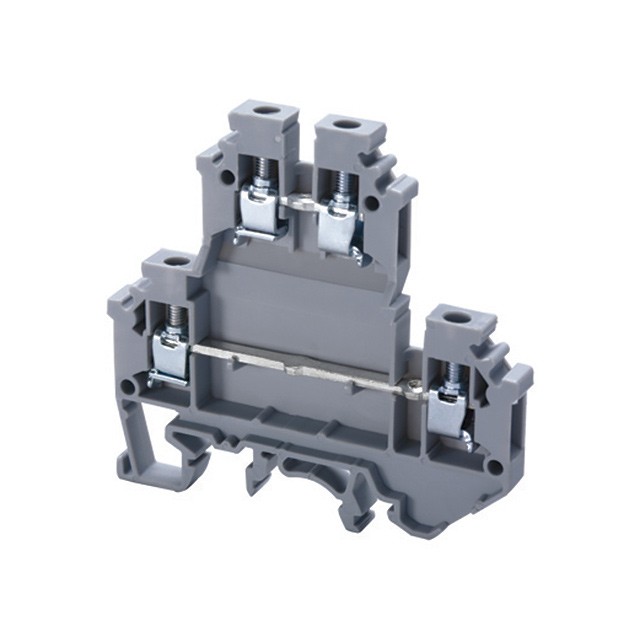

ODL4U
ActiveAltech Corporation
CONN TERM BLK FEED THRU 10-22AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ODL4U
ActiveAltech Corporation
CONN TERM BLK FEED THRU 10-22AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ODL4U |
|---|---|
| Color | Gray |
| Current - IEC | 32 A |
| Current - UL | 35 A |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 9 mm |
| Terminal - Width [y] | 6 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm˛ [Max] | 4 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.2 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.39 | |
| 10 | $ 2.22 | |||
| 25 | $ 1.98 | |||
| 50 | $ 1.86 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.67 | |||
| 500 | $ 1.63 | |||
| 1000 | $ 1.59 | |||
| 5000 | $ 1.54 | |||
Description
General part information
ODL4 Series
Terminal Block Connector 4 Position Feed Through Gray 10-22 AWG
