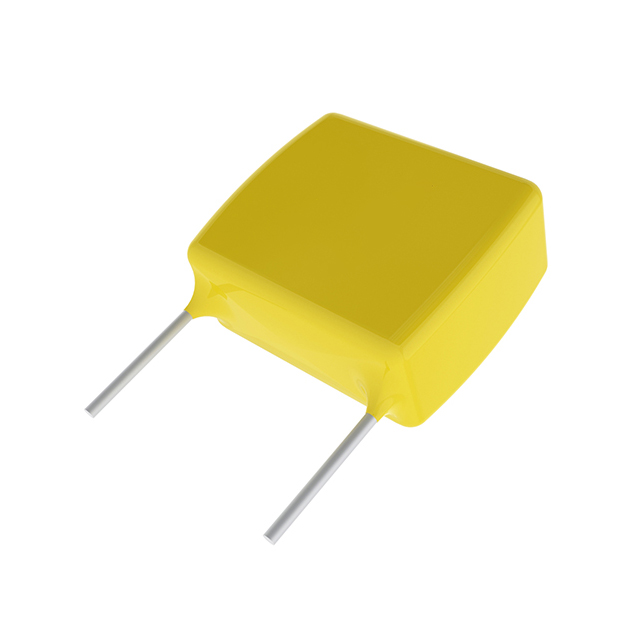

C320C185J5N5TA

Active

KEMET

CAP CER 1.8UF 50V X8L RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C320C185J5N5TA Spec

C320C185J5N5TA

Active

KEMET

CAP CER 1.8UF 50V X8L RADIAL

Deep-Dive with AI

DocumentsDatasheet C320C185J5N5TA Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C320C185J5N5TA

Applications	General Purpose
Capacitance	1.8 µF
Features	High Temperature
Height - Seated (Max) [Max]	7.36 mm
Height - Seated (Max) [Max]	0.29 "
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.2 in
Size / Dimension [x]	5.08 mm
Size / Dimension [y]	0.125 in
Size / Dimension [y]	3.18 mm
Temperature Coefficient	X8L
Tolerance	5 %
Voltage - Rated	50 VDC

C320C Series

...

Part	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Voltage - Rated	Applications	Temperature Coefficient	Features	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Lead Style	Capacitance
KEMET C320C393F3G5TA7301	1 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	25 VDC	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	0.039 µF
KEMET C320C912K2G5TA	10 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	200 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	9100 pF
KEMET C320C183G5G5TA7301	2 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	50 VDC	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	0.018 µF
KEMET C320C472K3G5TA7301	10 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	25 VDC	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	4700 pF
KEMET C320C123J1G5TA7301	5 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	100 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	0.012 µF
KEMET C320C131F3G5TA	1 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	25 VDC	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	130 pF
KEMET C320C432F2G5TA7301	1 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	200 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	4300 pF
KEMET C320C185J5N5TA	5 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	150 °C	0.1 in	2.54 mm	50 VDC	General Purpose	X8L	High Temperature	Through Hole	7.36 mm	0.29 "	Radial	Straight	1.8 µF
KEMET C320C562K2G5TA	10 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	200 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	5600 pF
KEMET C320C120FAG5TA7301	1 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	250 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	12 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.28

Description

General part information

C320C Series

1.8 µF ±5% 50V Ceramic Capacitor X8L Radial

Documents

Technical documentation and resources

Datasheet

C320C185J5N5TA Spec

Datasheet
