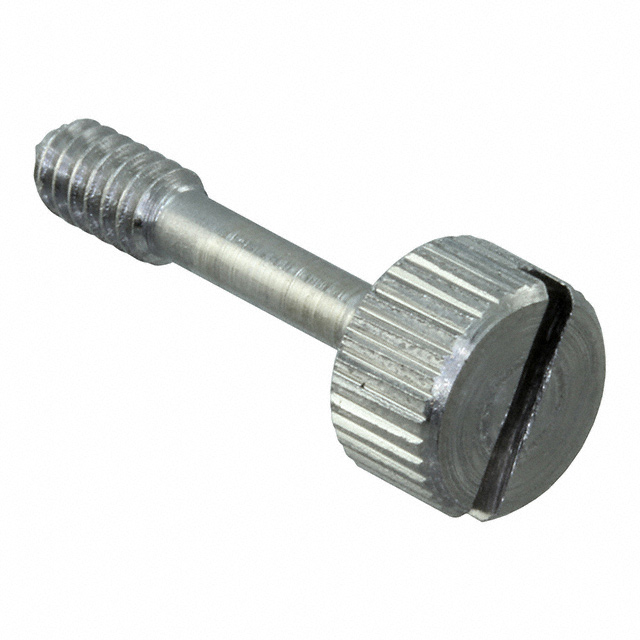

0106-SS-20
ActiveRAF Electronic Hardware
5/16HD X 23/32 X 6-32 THD
Deep-Dive with AI
Search across all available documentation for this part.
0106-SS-20
ActiveRAF Electronic Hardware
5/16HD X 23/32 X 6-32 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0106-SS-20 |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 0.313 in |
| Head Diameter [diameter] | 7.94 mm |
| Head Height | 0.188 in |
| Head Height | 4.76 mm |
| Length - Below Head [x] | 18.26 mm |
| Length - Below Head [x] | 0.719 in |
| Length - Overall | 0.906 " |
| Length - Overall | 23.02 mm |
| Material | Stainless Steel |
| Screw Head Type | Knob |
| Thread Size | #6-32 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.50 | |
| 5 | $ 4.38 | |||
| 10 | $ 4.26 | |||
| 25 | $ 4.17 | |||
Description
General part information
0106-SS Series
#6-32 Knob Panel Screw Slotted Drive Stainless Steel
Documents
Technical documentation and resources
