45-2234.11H0.000

Active

EAO

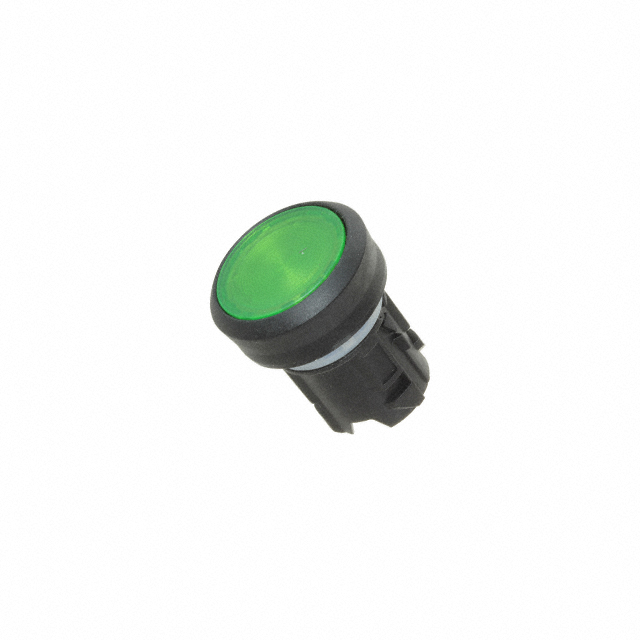

SWITCH ACTUATOR, EAO 45 SERIES ILLUMINATED PUSHBUTTON SWITCHES, IP66, IP67, IP69K

Search across all available documentation for this part.

Active

EAO

SWITCH ACTUATOR, EAO 45 SERIES ILLUMINATED PUSHBUTTON SWITCHES, IP66, IP67, IP69K

Technical Specifications

Parameters and characteristics for this part

Specification	45-2234.11H0.000

(Select First, Then Apply Filters) Compatible Series	45, EAO
Actuator Type	Pushbutton, Round
Illumination	Illuminated - Green
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Maintained

Part	Requires	Type	Actuator Type	Panel Cutout Dimensions	(Select First, Then Apply Filters) Compatible Series	Illumination
EAO 45-2234.21E0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	22.3 mm	45 EAO
EAO 45-2234.21J0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	22.3 mm	45 EAO	Illuminated - Blue
EAO 45-2234.11K0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	22.3 mm	45 EAO	Illuminated
EAO 45-2234.21G0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	22.3 mm	45 EAO	Illuminated - Yellow
EAO 45-2234.4FH0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	30.5 mm	45 EAO	Illuminated - Green
EAO 45-2234.4FK0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	30.5 mm	45 EAO	Illuminated
EAO 45-2234.11H0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	22.3 mm	45 EAO	Illuminated - Green
EAO 45-2234.31K0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	22.3 mm	45 EAO	Illuminated
EAO 45-2234.11G0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	22.3 mm	45 EAO	Illuminated - Yellow
EAO 45-2234.4FG0.000	Contact Block(s) Illumination Source	Maintained	Pushbutton Round	30.5 mm	45 EAO	Illuminated - Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Pushbutton, Round Illuminated - Green
