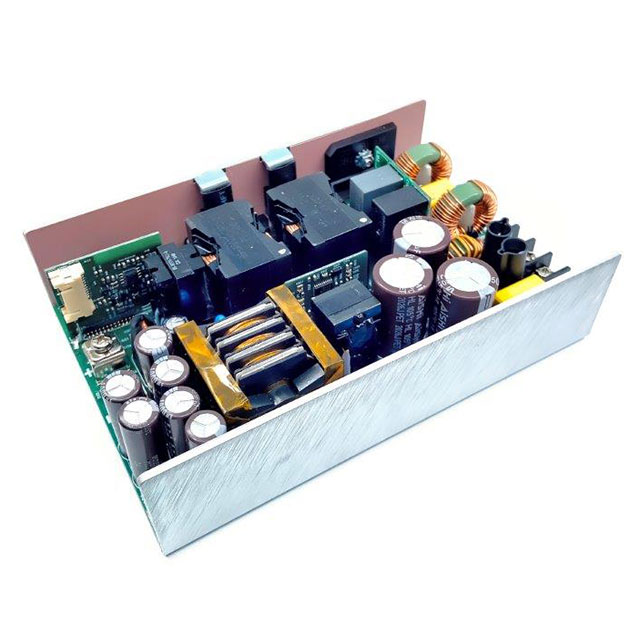

NGB660S48C

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 13.6(CONDUCTION)A/9.1(CONVECTION)A/13.6(FORCED AIR)A 660W 19-PIN

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 13.6(CONDUCTION)A/9.1(CONVECTION)A/13.6(FORCED AIR)A 660W 19-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	NGB660S48C

Applications	ITE (Commercial), Medical
Approval Agency	UL, CSA, CE, cURus
Current - Output 1	9.38 A
Efficiency	90 %
Features	Standby Output, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-20 °C
Power (Watts)	450 W
Power (Watts)	662 W
Size / Dimension [x]	6 in
Size / Dimension [x]	152.4 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	39.4 mm
Size / Dimension [z]	1.55 in
Standard Number	60601-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4.5 kV
Voltage - Output 1	48 V

Switching Power Supplies NGB660S15K

Part	Approval Agency	Applications	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Isolation	Efficiency	Features	Power (Watts)	Power (Watts)
SL POWER / Advanced Energy NGB660S15K	CE cURus	ITE (Commercial) Medical	1	264 VAC	80 VAC	15 V	60601-1 62368-1	6 in	39.4 mm	152.4 mm	4 "	101.6 mm	1.55 in	24.5 A	Chassis Mount	-20 °C	80 ¯C	Open Frame	4.5 kV	90 %	Adjustable Output Standby Output Universal Input
SL POWER / Advanced Energy NGB660S48C	CE CSA cURus UL	ITE (Commercial) Medical	1	264 VAC	80 VAC	48 V	60601-1 62368-1	6 in	39.4 mm	152.4 mm	4 "	101.6 mm	1.55 in	9.38 A	Chassis Mount	-20 °C	80 ¯C	Open Frame	4.5 kV	90 %	Adjustable Output Standby Output Universal Input	450 W	662 W
SL POWER / Advanced Energy NGB660S15C	CE cURus	ITE (Commercial) Medical	1	264 VAC	80 VAC	15 V	60601-1 62368-1	6 in	39.4 mm	152.4 mm	4 "	101.6 mm	1.55 in	24.5 A	Chassis Mount	-20 °C	80 ¯C	Open Frame	4.5 kV	90 %	Adjustable Output Standby Output Universal Input
SL POWER / Advanced Energy NGB660S24K	CE CSA cURus UL	ITE (Commercial) Medical	1	264 VAC	80 VAC	24 V	60601-1 62368-1	6 in	39.4 mm	152.4 mm	4 "	101.6 mm	1.55 in	18.8 A	Chassis Mount	-20 °C	80 ¯C	Open Frame	4.5 kV	90 %	Adjustable Output Standby Output Universal Input	451 W	660 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	32	$ 219.93
