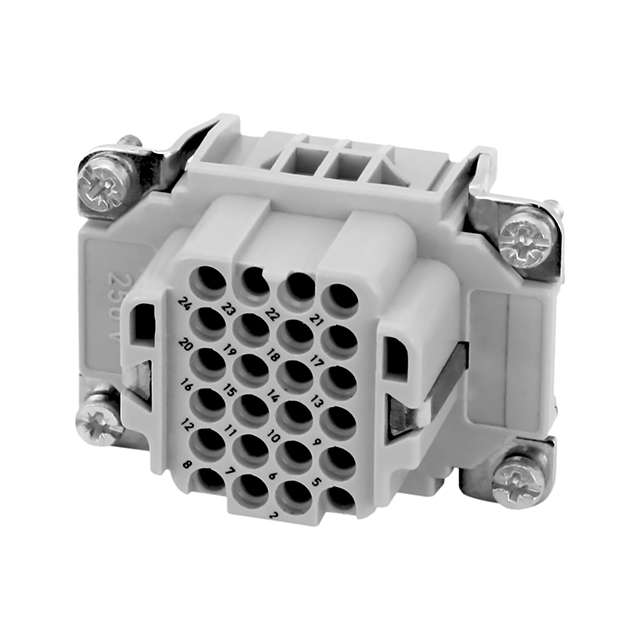

C146 10B024 000 9
ActiveAmphenol Tuchel Industrial
INSERT FEMALE 24POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C146 10B024 000 9
ActiveAmphenol Tuchel Industrial
INSERT FEMALE 24POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 10B024 000 9 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | DD, M, C146 D, heavy|mate® |
| Current Rating (Amps) | 8.5 A |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.44 | |
| 10 | $ 13.97 | |||
| 30 | $ 12.93 | |||
| 50 | $ 12.47 | |||
| 100 | $ 11.87 | |||
| 250 | $ 11.13 | |||
| 500 | $ 10.60 | |||
Description
General part information
C146 10B024 Series
Female Insert without Contacts Gray 24+Ground Position Crimp
