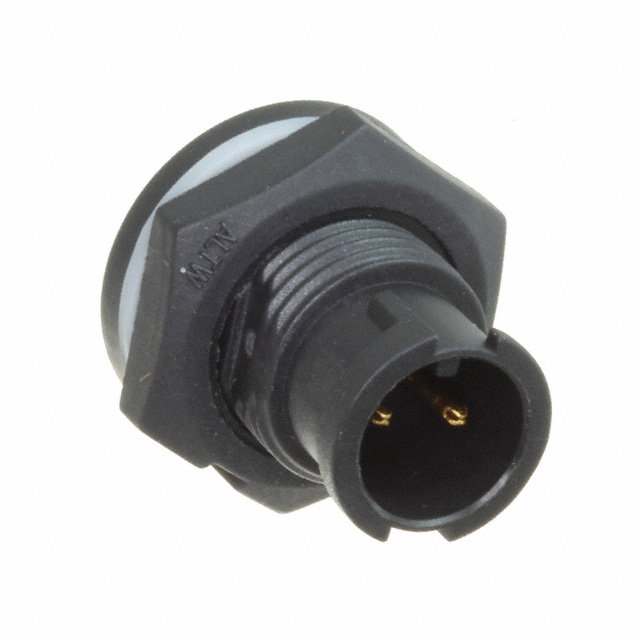

AAD-02PMMS-LC7001

Active

Amphenol LTW

CONN RCPT MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	AAD-02PMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	A
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Shielding	Voltage Rating	Orientation	Current Rating (Amps)	Connector Type	Mounting Feature	Contact Material	Number of Positions	Ingress Protection	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Contact Finish - Mating	Shell Material	Insert Material	Primary Material	Color
Amphenol LTW AAD-02PMMS-LC7001	Unshielded	300 VDC	Keyed	5 A	Male Pins Receptacle	Bulkhead - Front Side Nut	Copper Alloy	2	IP67 - Dust Tight Waterproof	Bayonet Lock	-40 °C	105 ░C	A	Gold	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Plastic	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup
