OSTHT060080
ActiveOn Shore Technology Inc.

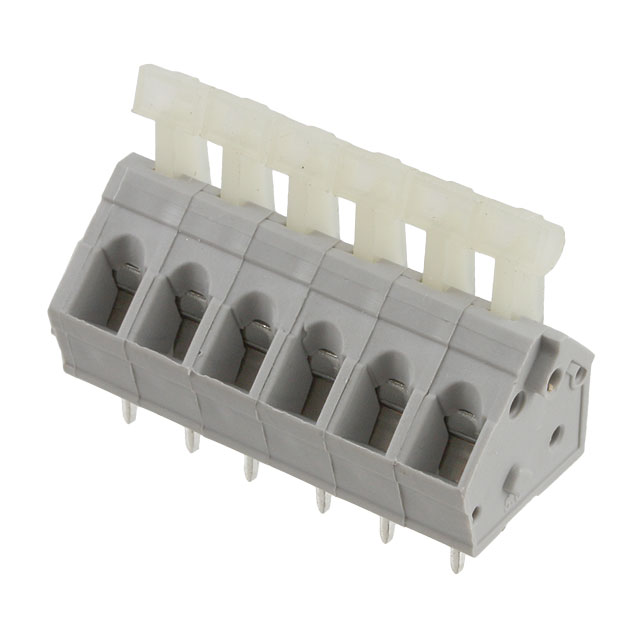

TERM BLOCK 6POS 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTHT060080
ActiveOn Shore Technology Inc.
TERM BLOCK 6POS 5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTHT060080 |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Gray |
| Contact Material - Plating [custom] | Brass |
| Current | 15 A |
| Features | Lever Actuated, Interlocking (Side) |
| Housing Material | Thermoplastic |
| Mating Orientation | Angled |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 6 |
| Voltage | 300 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.57 | |
| 10 | $ 2.72 | |||
| 25 | $ 2.55 | |||
| 50 | $ 2.26 | |||
| 100 | $ 2.21 | |||
| 250 | $ 2.04 | |||
| 500 | $ 1.85 | |||
| 1000 | $ 1.64 | |||
| 5000 | $ 1.54 | |||
Description
General part information
OSTHT06 Series
6 Position Wire to Board Terminal Block Angled 0.197" (5.00mm) Through Hole
