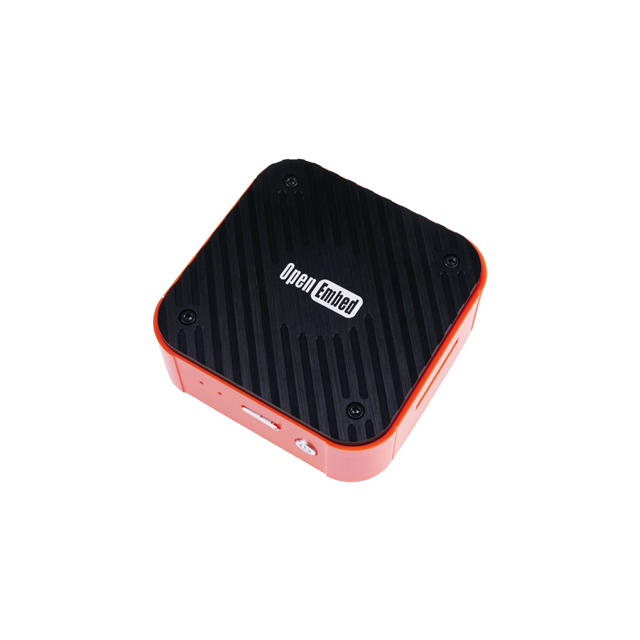

102991560

Unknown

Seeed Technology Co., Ltd

SBC 1.5GHZ 4 CORE 1GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

102991560

Unknown

Seeed Technology Co., Ltd

SBC 1.5GHZ 4 CORE 1GB/0GB RAM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	102991560

Core Processor	Raspberry Pi CM4 ARM Cortex-A72
Ethernet	2, 100, 10, 1000
Ethernet	RJ45
Expansion Site/Bus	mPCIe
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	0 GB, 1 GB
Size / Dimension [x]	98.04 mm
Size / Dimension [x]	3.86 in
Size / Dimension [y]	3.86 in
Size / Dimension [y]	98.04 mm
Speed	1.5 GHz
Storage Interface	M.2, eMMC
USB	USB 2.0 (2)
Video Outputs	HDMI
Watchdog Timer	False

10299 Series

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Core Processor	Number of Cores	Video Outputs	RAM Capacity/Installed	Speed	Expansion Site/Bus	Ethernet	Ethernet	Storage Interface	USB	Contents	Ethernet [Min]	Ethernet [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Digital I/O Lines	RAM Capacity/Installed	Form Factor	Contents	RS-232 (422, 485)
Seeed Technology Co., Ltd 102990170	118 mm	4.646 in	3.346 in	84.98 mm	Rockchip RK3288 ARM Cortex A17	4	eDP HDMI LVDS MIPI-CSI VGA	2 GB 16 GB	1.8 GHz	GPIO I2C I2S SPI UART	10 Mbps 100 Mbps 1000 Mbps	RJ45	eMMC microSD	USB 2.0 (2) USB OTG (1)	SD Card
Seeed Technology Co., Ltd 102990039					Broadcom BCM2835 ARM1176JZF-S	1	DSI HDMI	0 GB 512 MB	700 MHz	GPIO I2C SPI UART		RJ45	eMMC/SD SDIO	USB 2.0 (2)		10 Mbps	100 Mbps
Seeed Technology Co., Ltd 102991380	55 mm	2.17 "	1.57 "	40 mm	Broadcom BCM2711 Arm Cortex-A72	4	CSI DSI HDMI	0 GB 1 GB	1.5 GHz	GPIO PCIe		GbE	eMMC SD	USB 2.0 (1)				80 C	0 °C
Seeed Technology Co., Ltd 102991306					NXP i.MX6ULL ARM Cortex A7	1		8 GB 512 MB	800 MHz	I2C LCD SD			eMMC microSD NAND - Flash	USB OTG Type C (1) USB Type A (1)	SD Card			80 C	-20 C
Seeed Technology Co., Ltd 102991560	98.04 mm	3.86 in	3.86 in	98.04 mm	Raspberry Pi CM4 ARM Cortex-A72	4	HDMI	0 GB 1 GB	1.5 GHz	mPCIe	2 10 100 1000	RJ45	eMMC M.2	USB 2.0 (2)				60 °C	0 °C
Seeed Technology Co., Ltd 102991561	98.04 mm	3.86 in	3.86 in	98.04 mm	Raspberry Pi CM4 ARM Cortex-A72	4	HDMI	0 GB 4 GB	1.5 GHz	mPCIe	2 10 100 1000	RJ45	eMMC M.2	USB 2.0 (2)				60 °C	0 °C
Seeed Technology Co., Ltd 102990157	100.07 mm	3.94 in	2.36 "	59.94 mm	ARM Cortex-A7	2	HDMI		1 GHz		10 Mbps 100 Mbps	(1)		USB 2.0 (2) USB 2.0 Mini (1)						96	1GB/1GB
Seeed Technology Co., Ltd 102990089					ARM Cortex-A7	2	CVBS HDMI LVDS RGB VGA	4 GB 32 GB		CVBS HDMI I2C I2S RGB UART VGA	10 Mbps 100 Mbps		microSD		microSD Card							Pico-ITX	32 GB
Seeed Technology Co., Ltd 102991558	123.95 mm	4.88 "	2.99 in	75.94 mm	Raspberry Pi CM4 ARM Cortex-A72	4	HDMI	0 GB 1 GB	1.5 GHz	GPIO I2C I2S mPCIe PWM SDIO SPI UART	10 100 1000	RJ45	eMMC M.2	USB 2.0 (2)				60 °C	-20 C					2
Seeed Technology Co., Ltd 102991559	123.95 mm	4.88 "	2.99 in	75.94 mm	Raspberry Pi CM4 ARM Cortex-A72	4	HDMI	0 GB 4 GB	1.5 GHz	GPIO I2C I2S mPCIe PWM SDIO SPI UART	10 100 1000	RJ45	eMMC M.2	USB 2.0 (2)	Power Supply			60 °C	-20 C					2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 136.25

Description

General part information

10299 Series

Single Board Computer 1.5GHz 4 Core 1GB/0GB RAM Raspberry Pi CM4 ARM Cortex-A72

Documents

Technical documentation and resources

No documents available
