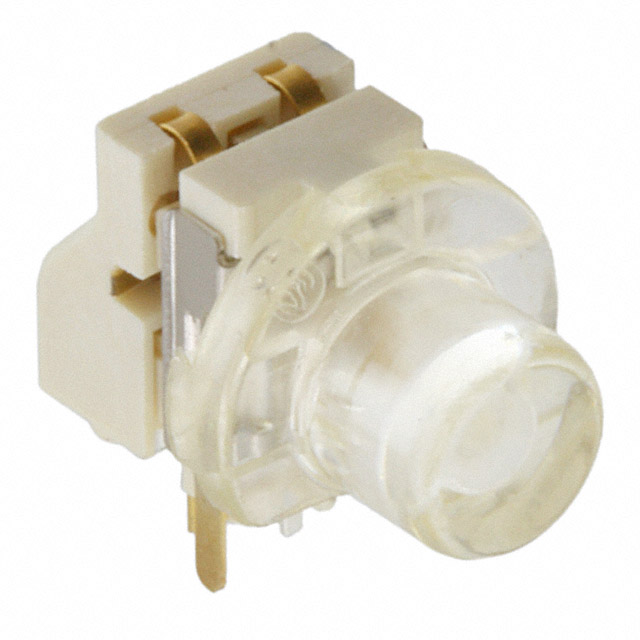

TL1270F160REQAT
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TL1270F160REQAT |
|---|---|
| Actuator Length, Right Angle | 5.62 mm |
| Actuator Orientation | Side Actuated |
| Actuator Type | Round Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Illuminated |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 3.6 VDC |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 4.5 mm |
| Outline [y] | 4.95 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.17 | |
| 10 | $ 5.63 | |||
| 25 | $ 5.12 | |||
| 100 | $ 4.42 | |||
| Tape & Reel (TR) | 300 | $ 4.09 | ||
| 600 | $ 3.82 | |||
| 900 | $ 3.67 | |||
| 1500 | $ 3.48 | |||
| 2100 | $ 3.37 | |||
| 3000 | $ 3.32 | |||
Description
General part information
TL1270 Series
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
