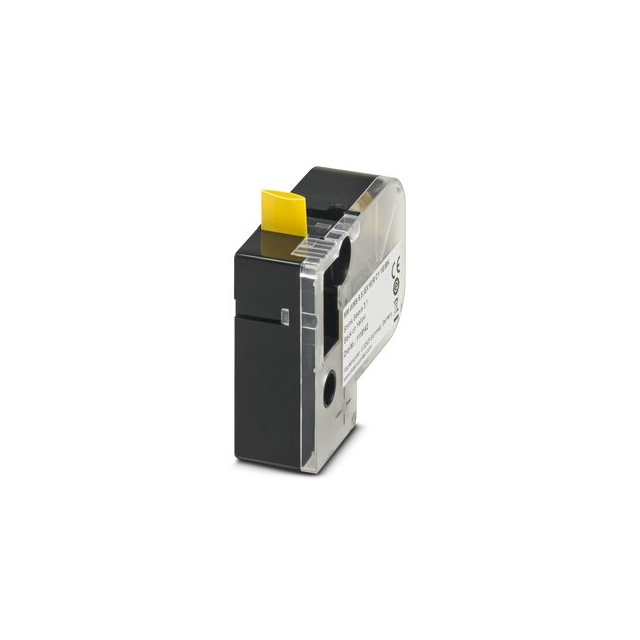

1116142

Active

Phoenix Contact

SHRINK SLEEVE, ROLL, YELLOW/BLAC

Search across all available documentation for this part.

Active

Phoenix Contact

SHRINK SLEEVE, ROLL, YELLOW/BLAC

Technical Specifications

Parameters and characteristics for this part

Part	Material	Label Size [diameter]	Label Size [x]	Label Size [diameter]	Label Size [x]	Label Size [y]	Label Size [y]	Label Type	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [Min]	Label Size [Max]	Label Size [Min] [diameter]	Label Size [Max] [diameter]	Label Size [Max] [diameter]	Label Size [Min] [diameter]	Label Size [Max]	Label Size [Min]
Phoenix Contact 1116142	Polyolefin (PO)	3.2 mm 9.5 mm	16.8 mm	0.13 in 0.37 in	0.66 in	1 mm	0.04 in	Heat Shrinkable	-55 °C	125 °C
Phoenix Contact 1116141	Polyolefin (PO)		0.44 in 11.2 mm			0.04 in 1 mm		Heat Shrinkable	-55 °C	125 °C	0.08 in 2.1 mm	0.25 in 6.4 mm
Phoenix Contact 1116140	Polyolefin (PO)		8.4 mm		0.33 in	1 mm	0.04 "	Heat Shrinkable	-55 °C	125 °C			0.06 in	4.8 mm	0.19 in	1.6 mm
Phoenix Contact 1116139	Polyolefin (PO)		6.1 mm		0.24 in	1 mm	0.04 "	Heat Shrinkable	-55 °C	125 °C	0.04 in	0.13 "					3.2 mm	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black, Yellow Heat Shrinkable Label 0.66" x 0.04" (16.8mm x 1.0mm); Cable O.D. 0.13" ~ 0.37" (3.2mm ~ 9.5mm)
