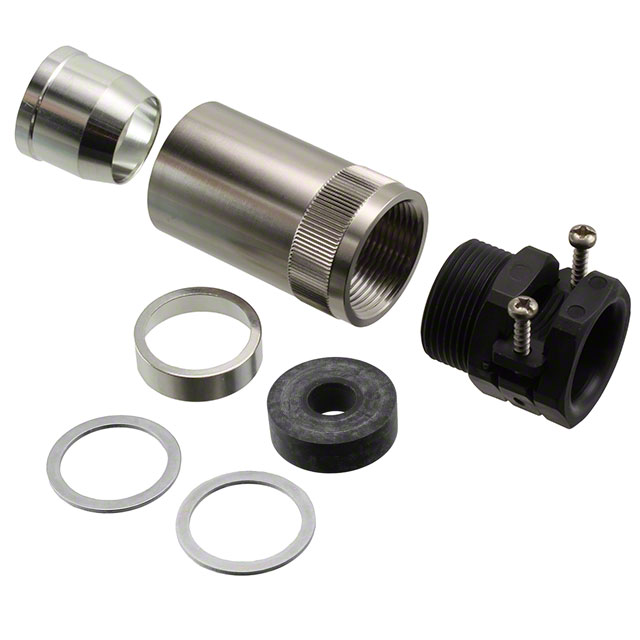

UT0S20JCPGN

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ20 SIL PG21

Deep-Dive with AI

Search across all available documentation for this part.

UT0S20JCPGN

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ20 SIL PG21

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT0S20JCPGN

Cable Exit	180 °
Cable Opening	0.874 in
Cable Opening	22.2 mm
Color	Silver
Features	Clamp Screws, Strain Relief
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Includes	2 Screws, 2 Washers, 1 Cable Clamp, 1 Backshell, 1 Grommet
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Aluminum Alloy
Material Flammability Rating	UL94 V-0
Plating	Nickel
Shell Size - Insert	20
Shielding	Shielded
Thread Size	PG21
Type	Backshell, Cable Clamp

UT0S2 Series

Part	Material	Material Flammability Rating	Ingress Protection	Shielding	Thread Size	Type	Features	Color	For Use With/Related Products	Shell Size - Insert	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Exit	Cable Opening [Max] [diameter]	Plating	Cable Opening	Cable Opening	Includes
Souriau-Sunbank by Eaton UT0S22JC	Brass	UL94 V-0	IP68 IP69K	Shielded	PG21	Backshell Cable Clamp	Sealing Gland Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	22	0.531 in	13.5 mm	18 mm	0.709 in	180 °
Souriau-Sunbank by Eaton UT0S22JCSL	Brass	UL94 V-0	IP68 IP69K	Shielded	PG21	Backshell Cable Clamp	Sealing Gland Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	22	0.669 in	17 mm		0.945 in	180 °	24 mm
Souriau-Sunbank by Eaton UT0S20PGP00T	Zinc Alloy	UL94 V-0		Shielded		Backshell Cable Clamp		Silver	Trim Trio® UTO Connectors with Pin Contacts	20							Nickel
Souriau-Sunbank by Eaton UT0S20JCS	Brass	UL94 V-0	IP68 IP69K	Shielded	PG21	Backshell Cable Clamp	Sealing Gland Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	20	0.531 in	13.5 mm	18 mm	0.709 in	180 °
Souriau-Sunbank by Eaton UT0S20JCPGN	Aluminum Alloy	UL94 V-0	IP65 - Dust Tight Water Resistant	Shielded	PG21	Backshell Cable Clamp	Clamp Screws Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	20					180 °		Nickel	0.874 in	22.2 mm	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers
Souriau-Sunbank by Eaton UT0S24JCS	Brass	UL94 V-0	IP68 IP69K	Shielded	PG29	Backshell Cable Clamp	Sealing Gland Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	24	0.531 in	13.5 mm	18 mm	0.709 in	180 °
Souriau-Sunbank by Eaton UT0S22JCL	Brass	UL94 V-0	IP68 IP69K	Shielded	PG21	Backshell Cable Clamp	Sealing Gland Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	22	0.669 in	17 mm		0.945 in	180 °	24 mm
Souriau-Sunbank by Eaton UT0S20JCSL	Brass	UL94 V-0	IP68 IP69K	Shielded	PG21	Backshell Cable Clamp	Sealing Gland Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	20	0.669 in	17 mm		0.945 in	180 °	24 mm
Souriau-Sunbank by Eaton UT0S24JCL	Brass	UL94 V-0	IP68 IP69K	Shielded	PG29	Backshell Cable Clamp	Sealing Gland Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	24	0.669 in	17 mm		0.945 in	180 °	24 mm
Souriau-Sunbank by Eaton UT0S24JCSL	Brass	UL94 V-0	IP68 IP69K	Shielded	PG29	Backshell Cable Clamp	Sealing Gland Strain Relief	Silver	Trim Trio® UTO and UTOW Connectors	24	0.669 in	17 mm		0.945 in	180 °	24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.72
		10	$ 43.17
		25	$ 39.20
		50	$ 36.51
		100	$ 34.08
		250	$ 31.22

Description

General part information

UT0S2 Series

Silver Connector Backshell, Cable Clamp PG21 20
