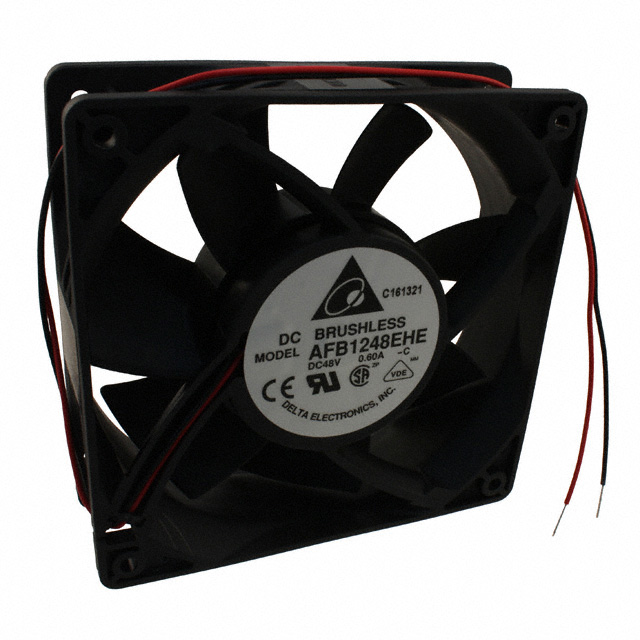

AFB1248EHE-C
ObsoleteDelta Electronics
FAN AXIAL 120X38MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB1248EHE-C
ObsoleteDelta Electronics
FAN AXIAL 120X38MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB1248EHE-C |
|---|---|
| Air Flow | 5.95 m³/min |
| Air Flow | 212.6 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 480 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 58.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 23 W |
| RPM | 4600 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 0.844 in H2O |
| Static Pressure | 210.2 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 56 VDC |
| Voltage Range [Min] | 24 VDC |
| Weight | 330.22 g |
| Weight | 0.728 lb |
| Width [y] | 38 mm |
AFB1248 Series
| Part | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Width [y] | Noise | Ingress Protection | Material - Frame | Voltage - Rated [custom] | RPM | Fan Type | Air Flow | Air Flow | Size / Dimension [y] | Size / Dimension [x] | Current Rating (Amps) | Bearing Type | Lifetime @ Temp. | Approval Agency | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Weight | Weight | Static Pressure | Static Pressure | Termination | Power (Watts) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | 41 dB | IP55 - Dust Protected Water Resistant | Plastic | 48 VDC | 2600 RPM | Tubeaxial | 2.97 mł/min | 105.9 CFM | 120 mm | 120 mm | 120 mA | Ball | 70000 Hrs | CE CSA UL VDE | 28 V | 56 VDC | Plastic | 256.28 g | 0.565 lb | 74.7 Pa | 0.3 in H2O | 2 Wire Leads | ||
Delta Electronics | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | 41 dB | Plastic | 48 VDC | 2600 RPM | Tubeaxial | 2.97 mł/min | 105.9 CFM | 120 mm | 120 mm | 120 mA | Ball | 70000 Hrs | CE CSA UL VDE | 28 V | 56 VDC | Plastic | 256.28 g | 0.565 lb | 74.7 Pa | 0.3 in H2O | 2 Wire Leads | |||
Delta Electronics | 38 mm | 48 VDC | Tubeaxial | 120 mm | 120 mm | CE CSA UL VDE | |||||||||||||||||||||||
Delta Electronics | -40 °C | -40 °C | 70 °C | 70 °C | 38 mm | 55.5 dB | IP55 - Dust Protected Water Resistant | Plastic | 48 VDC | 4100 RPM | Tubeaxial | 5.33 m³/min | 190.5 CFM | 120 mm | 120 mm | 0.31 A | Ball | 70000 Hrs | CE CSA UL VDE | 34 VDC | 56 VDC | Plastic | 330.22 g | 0.728 lb | 173 Pa | 0.694 in H2O | 4 Wire Leads | 14.88 W | Locked Rotor Protection PWM Control Speed Sensor (Tach) |
Delta Electronics | -10 °C | -10 °C | 70 °C | 70 °C | 38 mm | 58.5 dB | Plastic | 48 VDC | 4600 RPM | Tubeaxial | 5.95 m³/min | 212.6 CFM | 120 mm | 120 mm | 480 mA | Ball | 70000 Hrs | CE CSA UL VDE | 24 VDC | 56 VDC | Plastic | 330.22 g | 0.728 lb | 210.2 Pa | 0.844 in H2O | 2 Wire Leads | 23 W | ||
Delta Electronics | -10 °C | -10 °C | 70 °C | 70 °C | 38 mm | 55.5 dB | IP55 - Dust Protected Water Resistant | Plastic | 48 VDC | 4100 RPM | Tubeaxial | 5.33 m³/min | 190.5 CFM | 120 mm | 120 mm | 0.31 A | Ball | 70000 Hrs | CE CSA UL VDE | 24 VDC | 56 VDC | Plastic | 330.22 g | 0.728 lb | 173 Pa | 0.694 in H2O | 2 Wire Leads | 14.88 W | |
Delta Electronics | -40 °C | -40 °C | 70 °C | 70 °C | 38 mm | 55.5 dB | Plastic | 48 VDC | 4100 RPM | Tubeaxial | 5.33 m³/min | 190.5 CFM | 120 mm | 120 mm | 0.31 A | Ball | 70000 Hrs | CE CSA UL VDE | 34 VDC | 56 VDC | Plastic | 330.22 g | 0.728 lb | 173 Pa | 0.694 in H2O | 4 Wire Leads | 14.88 W | Locked Rotor Protection PWM Control Speed Sensor (Tach) | |
Delta Electronics | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | 41 dB | Plastic | 48 VDC | 2600 RPM | Tubeaxial | 2.97 mł/min | 105.9 CFM | 120 mm | 120 mm | 120 mA | Ball | 70000 Hrs | CE CSA UL VDE | 28 V | 56 VDC | Plastic | 256.28 g | 0.565 lb | 74.7 Pa | 0.3 in H2O | 3 Wire Leads | Locked Rotor Protection Speed Sensor (Tach) | ||
Delta Electronics | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | 44 dB | Plastic | 48 VDC | 2900 RPM | Tubeaxial | 3.36 m³/min | 120.1 CFM | 120 mm | 120 mm | 150 mA | Ball | 70000 Hrs | CE CSA UL VDE | 28 V | 56 VDC | Plastic | 256.28 g | 0.565 lb | 88.2 Pa | 0.354 in H2O | 3 Wire Leads | 7.2 W | Locked Rotor Sensor | |
Delta Electronics | 32 mm | 56 dB | Plastic | 48 VDC | 4300 RPM | Tubeaxial | 4.89 m³/min | 174.5 CFM | 120 mm | 120 mm | 0.35 A | Ball | CE CSA UL VDE | 24 VDC | 56 VDC | Plastic | 276.24 g | 0.609 lb | 163.4 Pa | 0.656 in H2O | 3 Wire Leads | 16.8 W | Locked Rotor Sensor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AFB1248 Series
Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 212.6 CFM (5.95m³/min) 2 Wire Leads
