CR5.30.02
ActivePrysmian Group
CABLE CAT5E 8COND 24AWG WHITE
Deep-Dive with AI
Search across all available documentation for this part.
CR5.30.02
ActivePrysmian Group
CABLE CAT5E 8COND 24AWG WHITE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CR5.30.02 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Rip Cord, Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 0.2 in |
| Jacket (Insulation) Diameter [diameter] | 5.08 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Usage | Sound, Security, Alarm |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 220.98 | |
| 3 | $ 204.43 | |||
| 5 | $ 197.34 | |||
| 7 | $ 192.62 | |||
| 10 | $ 187.89 | |||
| 25 | $ 176.07 | |||
| 50 | $ 166.62 | |||
Description
General part information
CR5.30 Series

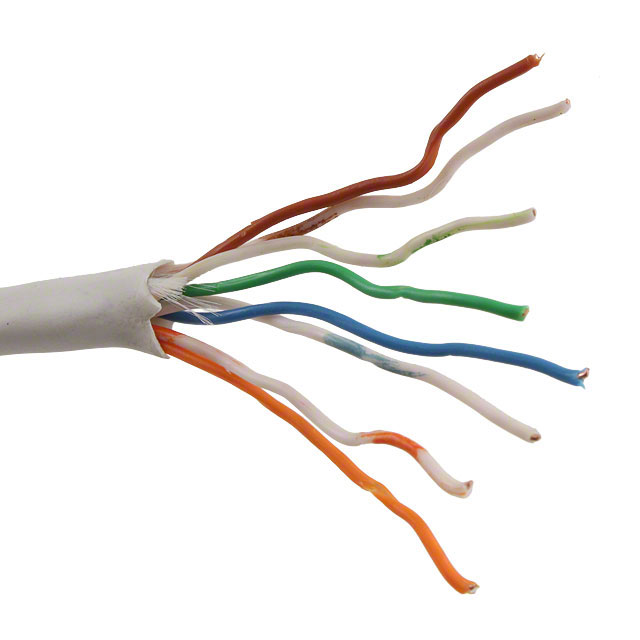

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable White 24 AWG 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
