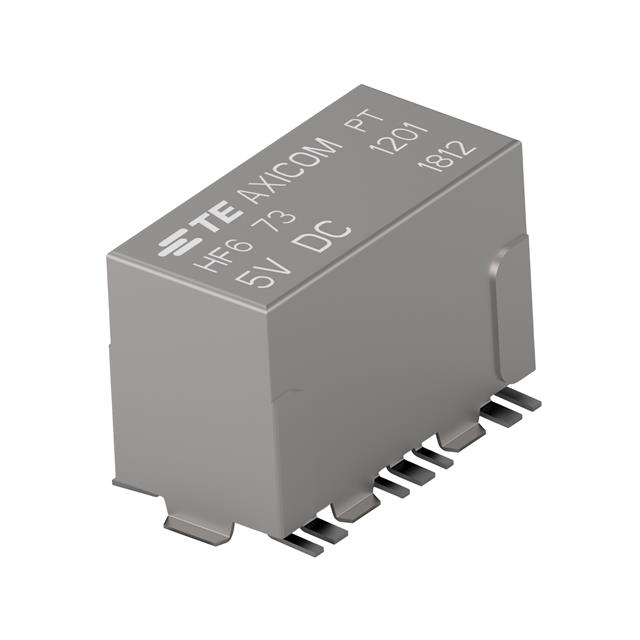

1-1462052-0

Active

TE Connectivity Potter & Brumfield Relays

RELAY RF SPDT 2A 5V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY RF SPDT 2A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Current	Must Operate Voltage	Operate Time	Coil Voltage	Contact Rating (Current)	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Coil Type	Termination Style	Switching Voltage	Contact Material	Contact Form	Coil Resistance	Must Release Voltage	Coil Power
TE Connectivity Potter & Brumfield Relays 2-1462052-0	11.7 mA	9 VDC	5 ms	12 VDC	2 A	5 ms	85 °C	-55 °C	Surface Mount	Latching Dual Coil	Gull Wing	220 VDC 250 VAC	Gold (Au) Silver (Ag)	SPDT (1 Form C)	1030 Ohms
TE Connectivity Potter & Brumfield Relays 1462052-1	46.9 mA	2.25 VDC	5 ms		2 A	5 ms	85 °C	-55 °C	Surface Mount	Non Latching	Gull Wing	220 VDC 250 VAC	Gold (Au) Silver (Ag)	SPDT (1 Form C)	64 Ohms	0.3 VDC
TE Connectivity Potter & Brumfield Relays 1462052-6	11.7 mA	9 VDC	5 ms	12 VDC	2 A	5 ms	85 °C	-55 °C	Surface Mount	Non Latching	Gull Wing	220 VDC 250 VAC	Gold (Au) Silver (Ag)	SPDT (1 Form C)	1030 Ohms	1.2 VDC
TE Connectivity Potter & Brumfield Relays 1-1462052-0	14 mA	3.75 VDC	5 ms	5 VDC	2 A	5 ms	85 °C	-55 °C	Surface Mount	Latching Single Coil	Gull Wing	220 VDC 250 VAC	Gold (Au) Silver (Ag)	SPDT (1 Form C)	357 Ohms		70 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 20.65

General part information

RELAY RF SPDT 2A 5V
