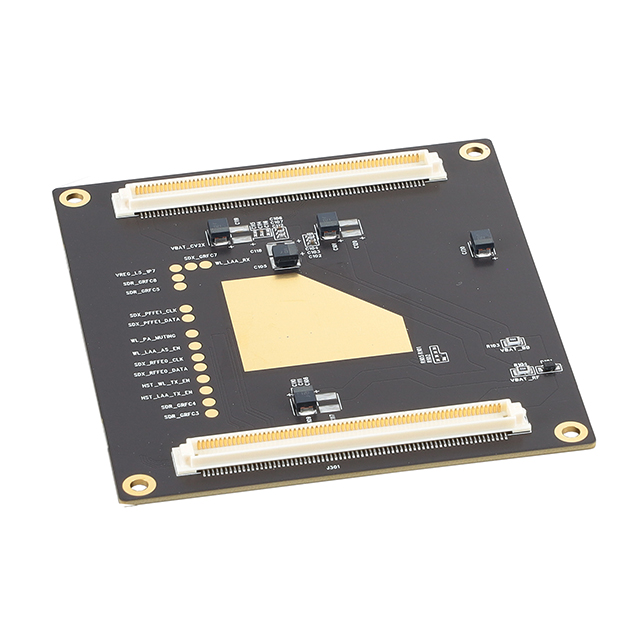

RG500QEAAA-M20-TA0AA

LTB

Quectel

RF TXRX MOD CELL NAV SMD

Search across all available documentation for this part.

LTB

Quectel

RF TXRX MOD CELL NAV SMD

Technical Specifications

Parameters and characteristics for this part

Specification	RG500QEAAA-M20-TA0AA

Antenna Type	Antenna Not Included
Current - Receiving	16 mA
Current - Transmitting	16 mA
Data Rate	2.5 Gbps
Frequency	6 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Package / Case	Module
Power - Output	26 dBm
Protocol	WCDMA, GNSS, GPS, LTE, GLONASS, Beidou, Galileo
RF Family/Standard	Cellular, Navigation
Serial Interfaces	UART, USB, GPIO, PCM, SDIO, ADC, I2S, SPI, I2C
Voltage - Supply [Max]	4.3 V
Voltage - Supply [Min]	3.3 V

Part	Data Rate	Antenna Type	RF Family/Standard	Current - Transmitting	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces	Frequency	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	Utilized IC / Part	Current - Receiving	Protocol	Mounting Type
Quectel RG500QEAAA-M20-SGASA	2.5 Gbps	Antenna Not Included	Cellular Navigation	16 mA	-30 ░C	75 ░C	ADC GPIO I2C I2S PCM SDIO SPI UART USB	6 GHz	Module	4.3 V	3.3 V	26 dBm	SDX55-2-AA	16 mA	Beidou Galileo GLONASS GNSS GPS LTE WCDMA	Surface Mount
Quectel RG500QEAAA-M20-TA0AA	2.5 Gbps	Antenna Not Included	Cellular Navigation	16 mA	-30 ░C	75 ░C	ADC GPIO I2C I2S PCM SDIO SPI UART USB	6 GHz	Module	4.3 V	3.3 V	26 dBm		16 mA	Beidou Galileo GLONASS GNSS GPS LTE WCDMA	Surface Mount
Quectel RG500QNAAA-M20-TA0AA	2.5 Gbps	Antenna Not Included	Cellular Navigation		-30 ░C	75 ░C	ADC GPIO I2C I2S PCM SDIO SPI UART USB	6 GHz	Module	4.3 V	3.3 V	26 dBm			Beidou Galileo GLONASS GNSS GPS LTE WCDMA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 375.00

General part information

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, WCDMA Transceiver Module 6GHz Antenna Not Included Surface Mount
