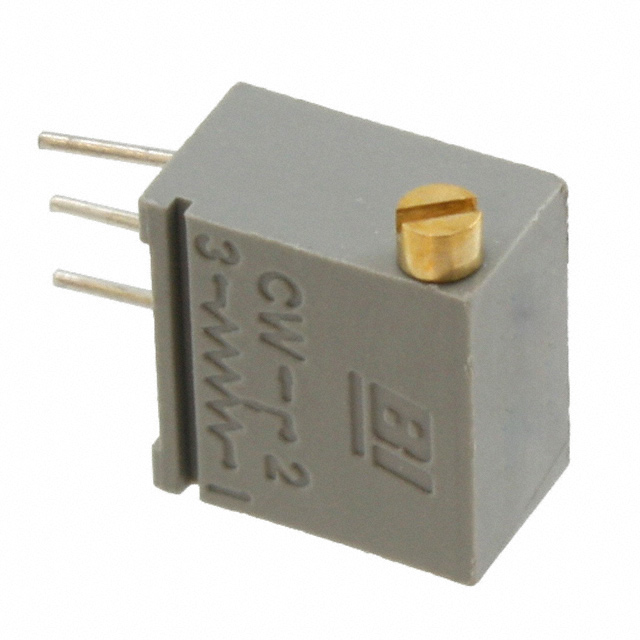

68XR500KLF

Active

TT Electronics/BI

TRIMMER 500KOHM 0.5W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

68XR500KLF

Active

TT Electronics/BI

TRIMMER 500KOHM 0.5W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	68XR500KLF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	20
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistive Material	Cermet
Size / Dimension [x]	9.53 mm
Size / Dimension [x]	0.375 in
Size / Dimension [y]	0.245 in
Size / Dimension [y]	6.22 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

68XR Series

Part	Temperature Coefficient	Resistive Material	Resistance	Number of Turns	Adjustment Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Mounting Type	Tolerance	Power (Watts)	Power (Watts)
TT Electronics/BI 68XR2KLF	100 ppm/°C	Cermet	2 kOhms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	10 %	0.5 W	0.5 W
TT Electronics/BI 68XR50LF	250 ppm/°C	Cermet	50 Ohms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	20 %	0.5 W	0.5 W
TT Electronics/BI 68XR20KLFTB	100 ppm/°C	Cermet	20 kOhms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	10 %	0.5 W	0.5 W
TT Electronics/BI 68XR100LF	100 ppm/°C	Cermet	100 Ohms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	10 %	0.5 W	0.5 W
TT Electronics/BI 68XR200KLF	100 ppm/°C	Cermet	200000 Ohms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	10 %	0.5 W	0.5 W
TT Electronics/BI 68XR250KLF	100 ppm/°C	Cermet	250 kOhms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	10 %	0.5 W	0.5 W
TT Electronics/BI 68XR20LF	250 ppm/°C	Cermet	20 Ohms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	20 %	0.5 W	0.5 W
TT Electronics/BI 68XR50KLF	100 ppm/°C	Cermet	50 kOhms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	10 %	0.5 W	0.5 W
TT Electronics/BI 68XR500KLF	100 ppm/°C	Cermet		20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	10 %	0.5 W	0.5 W
TT Electronics/BI 68XR200LFTB	100 ppm/°C	Cermet	200 Ohms	20	Side Adjustment	0.245 in	9.53 mm	6.22 mm	0.375 in	PC Pins	Through Hole	10 %	0.5 W	0.5 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	950	$ 1.29

Description

General part information

68XR Series

500 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 20.0 Turn Side Adjustment

Documents

Technical documentation and resources
