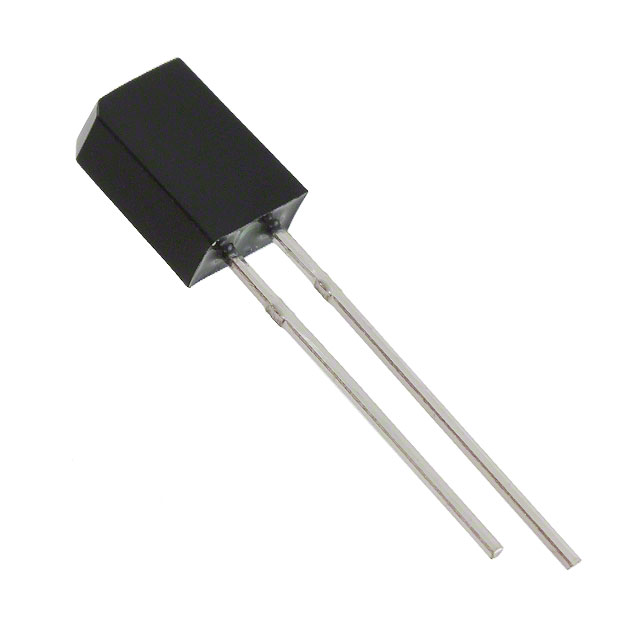

PD638B
ActiveEverlight Electronics Co Ltd
PIN PHOTODIODE, 5.25 X 2.75 MM, ROHS COMPLIANT, PLASTIC PACKAGE-2
Deep-Dive with AI
Search across all available documentation for this part.
PD638B
ActiveEverlight Electronics Co Ltd
PIN PHOTODIODE, 5.25 X 2.75 MM, ROHS COMPLIANT, PLASTIC PACKAGE-2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PD638B |
|---|---|
| Diode Type | PIN |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Response Time | 50 ns |
| Spectral Range [Max] | 1100 nm |
| Spectral Range [Min] | 840 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 170 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.36 | |
Description
General part information
PD638 Series
Photodiode 940nm 50ns Radial
Documents
Technical documentation and resources
No documents available
