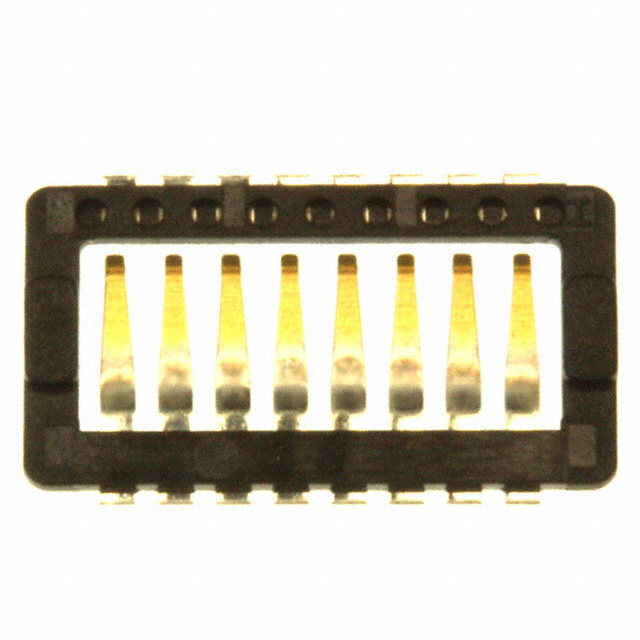

009258008008063

Active

Kyocera AVX

PCB STACKING CONNECTOR, 8POS, 1MM

Search across all available documentation for this part.

Active

Kyocera AVX

PCB STACKING CONNECTOR, 8POS, 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	009258008008063

Connector Type	Compression Contact, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Surface Mount
Number of Contacts	8
Number of Rows	1
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Contacts	Mounting Type	Contact Finish	Number of Rows
Kyocera AVX 009258008004064	0.039 in	1 mm	10 Áin	0.25 Ám	Compression Contact Non-Gendered	8	Surface Mount	Gold	1
Kyocera AVX 009258008008063	0.039 in	1 mm	10 Áin	0.25 Ám	Compression Contact Non-Gendered	8	Surface Mount	Gold	1
Kyocera AVX 009258008004061	0.039 in	1 mm	10 Áin	0.25 Ám	Compression Contact Non-Gendered	8	Surface Mount	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Spring Compression Contact, Non-Gendered Connector Surface Mount
