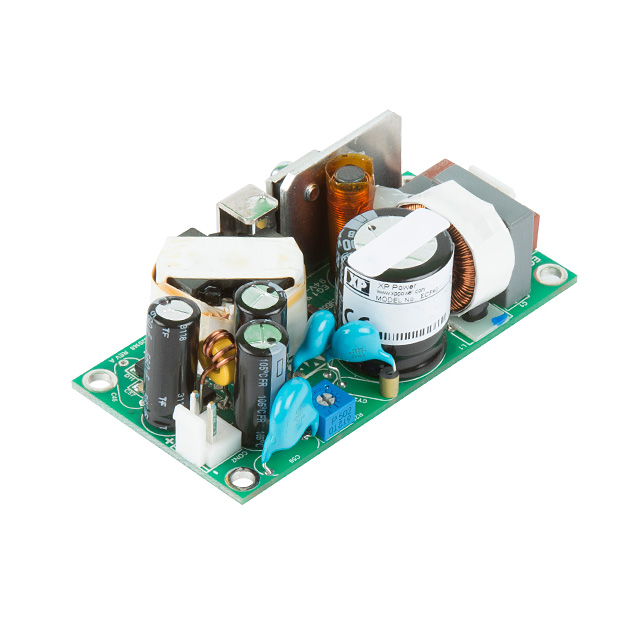

ECF40US12
ActiveXP POWER
AC/DC CONVERTER 12V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECF40US12
ActiveXP POWER
AC/DC CONVERTER 12V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECF40US12 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, TUV, UL |
| Current - Output 1 | 3.34 A |
| Efficiency | 91 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 38.1 mm |
| Size / Dimension [y] | 1.5 in |
| Size / Dimension [z] | 1.11 in |
| Size / Dimension [z] | 28.2 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.20 | |
| 5 | $ 23.47 | |||
| 10 | $ 22.75 | |||
| 25 | $ 21.78 | |||
| 100 | $ 20.33 | |||
Description
General part information
ECF40 Series
Open Frame AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
