SS-52400-002

Active

BEL MAGNETIC SOLUTIONS

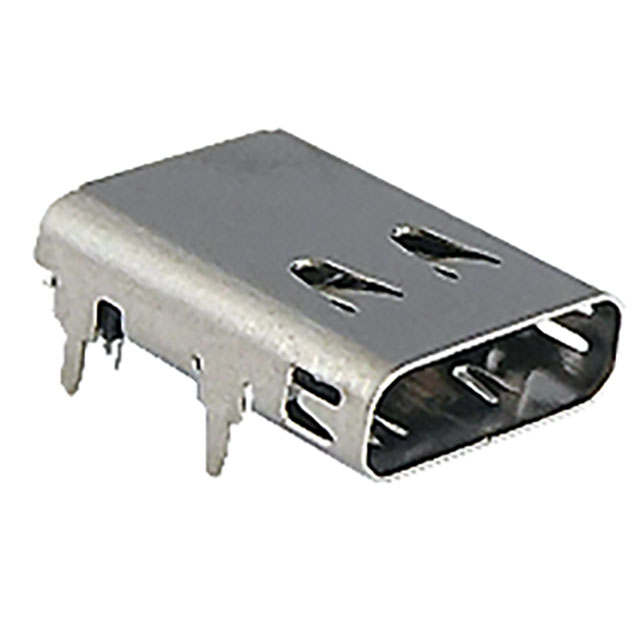

USB CONNECTORS 1.00MM USB TYPE C RA RECPT

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

USB CONNECTORS 1.00MM USB TYPE C RA RECPT

Technical Specifications

Parameters and characteristics for this part

Specification	SS-52400-002

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder

Part	Number of Ports	Current Rating (Amps)	Specifications	Termination	Number of Contacts	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Insulation Color	Contact Finish	Connector Type	Shielding	Gender	Shell/Shielding Material	Mounting Feature	Material Flammability Rating	Mounting Type
BEL MAGNETIC SOLUTIONS SS-52400-002	1	5 A	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Solder	24	-40 °C	105 ░C	10000	Black	Gold	USB-C (USB TYPE-C)	Shielded	Receptacle	Stainless Steel	Horizontal	UL94 V-0	Surface Mount Right Angle Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
