1751532

Active

Phoenix Contact

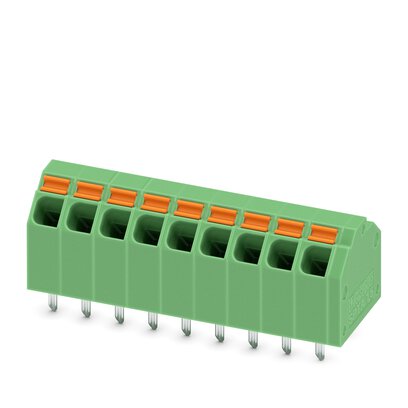

FIXED TERMINAL BLOCKS SPTA 1.5/9-3.81 9P 3.81MM

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SPTA 1.5/9-3.81 9P 3.81MM

Technical Specifications

Parameters and characteristics for this part

Specification	1751532

Color	Green
Current	10 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	135 °
Mating Orientation	45 °
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	9
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks SPTA 1/2-5.0 2P 5.0MM

Part	Mounting Type	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Color	Housing Material	Wire Termination	Pitch [x]	Pitch [x]	Voltage	Number of Levels	Current	Mating Orientation	Mating Orientation
Phoenix Contact 1752214	Through Hole	2	26 AWG	16 AWG	Green	Polyamide (PA) Nylon	Screwless - Spring Cage Tension Clamp	5 mm	0.197 in	300 V	1	10 A	155 °	25 °
Phoenix Contact 1751532	Through Hole	9	26 AWG	16 AWG	Green	Polyamide (PA) Nylon	Screwless - Spring Cage Tension Clamp	3.81 mm	0.15 in	300 V	1	10 A	135 °	45 °
